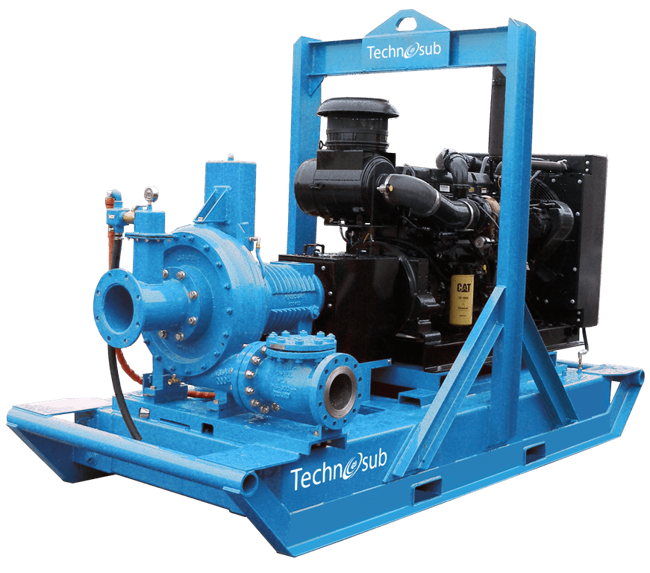

THHAP Series

Brand: Technosub
Add Product to My Catalog

THHAP_12.png TECH_courbes_THHAP.jpg
Technosub Standard High Head Auto Prime pumps are specifically designed to effectively handle a wide range of liquids in applications such as liquid transfer, wash down, fire protection, fracking and jetting where high heads and pressure are required. Technosub High Head Auto Prime pumps provide a dependable, highly efficient solution in a completely automatic priming pump.
Features
  • Rugged, heavy duty pumps engineered specifically for portable application
  • Belt-driven vacuum pump provides high air handling and a fully automatic priming system
  • Fully guarded coupling, pulley and belting
  • High efficiency air separation tank separates air and water before entering the pump
  • Condensation chamber with drain contains any condensation or water vapor from the air
  • Oil recovery system separates and remove oil and other particulates from the discharge air
  • Pump casings are hydrostatically tested to 50 psig (345 kPa) above the peak casing design pressure
  • Standard engine control panel provides preset emergency shutdown protection
  • Standard skid-mounted format with integral fuel tank, tie downs, lifting bail and fork pockets

Specifications

Brand

Connections

  • 6"x 4" (150 mm x 100 mm) - 12"x 10" (300 mm x 250 mm) ANSI Flanges

Maximum Pump Speed

  • 1800 rpm

Maximum Flow

  • 1300 gpm (295 m³/h) - 7500 gpm (1700 m³/h)

Maximum Head

  • 582’ (177 m) - 606’ (185 m)

Maximum Static Priming Lift

  • 28’ (8.5 m)

Water Temperature Limit

  • 160° F (70° C)

Solids Handling Capability

  • 7/8" (22 mm) - 2-1/2" (63 mm)

Maximum Casing Pressure

  • 300 psig (2068 kPa)

Standard Compact Fuel Tank

  • 175 gallons (662 liters) - 250 gallons (946 liters)

Optional Large Fuel Tank

  • 250 gallons (946 liters)

Test Fuel Tank

  • 7 gallons

Casing

  • Cast Steel (CD4MCu is an option

Impeller

  • CD4MCu

Bearing Housing

  • Cast Iron

Bearing Lubrication

  • Grease

Shaft

  • Steel

Shaft Sleeve

  • Stainless Steel

Seal

  • Silicon Carbide on Silicon Carbide

Chassis/Fuel Cell

  • Steel

Non-Return Valve

  • Steel

Environmental Box (Optional)

  • Steel

Documentation

Brochure
