6/12-Spur, Open-Frame, Fieldbus Barrier

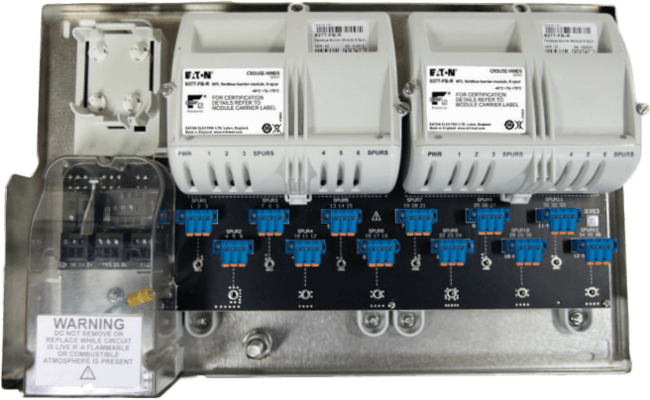

Brand: MTL InstrumentsThe 9387-FB2: 6-spur and 9388-FB2: 12-spur Fieldbus Barrier assemblies provide intrinsically safe spur connections from a high-energy trunk, for connection to suitably certified Foundation™ fieldbus H1 instruments.
Each unit comprises pre-wired and assembled system components on a stainless steel baseplate, for installation into a suitably certified field enclosure.
Connection facilities are provided for the trunk and spur wiring, as well as all electronic modules needed to support a fully-working Fieldbus Barrier. In a typical application, an Ex e: increased safety certified field enclosure will be selected to allow installation in a Zone 1 hazardous area; third-party approval of the enclosure and contents is normally required.
Alternative uses include applications that are not satisfied by the 9370-FB2 range of Fieldbus Barriers in standard enclosures, such as the installation of multiple fieldbus segments inside a single field enclosure.
Features- For Foundation™ Fieldbus Networks in Hazardous Areas
- Pre-assembled System Components for 6 or 12 Intrinsically Safe Spur Connections
- For Assembly into User-specified Field Enclosures
- Spurs Compatible with FISCO and "Entity-certified" Fieldbus Instruments
- Ergonomic Mechanical Design
- Pluggable System Components without "Gas Free" Constraints
- Optional, Integrated Surge Protection for Trunk and Spurs
Specifications
Brand
Fieldbus Barrier System
- 6-spur Fieldbus Barrier System with One 6-spur 9377-FB-R Module Installed
- 12-spur Fieldbus Barrier System with Two 6-spur 9377-FB-R Modules Installed
Connectors
- Pluggable Screw Terminal Connectors
- Pluggable Spring Clamp Connectors
- Equipment is Suitable for Use in Hazardous Area Applications
