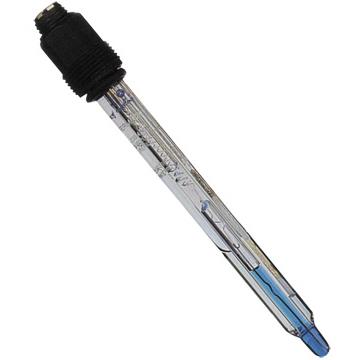

Hx338+ Steam Sterilizable & Autoclavable pH Sensor
Brand: RosemountThe Rosemount Hx338+ sensor provides the biotechnology and pharmaceutical industries with a unique pre-pressurized pH reference technology. The pre-pressurized reference stops contamination between batches by not allowing the process to leak into the sensor.
The pH reference also features a triple barrier junction which works to maintain a drift-free pH signal and fight poisoning ions (i.e., sulfides, proteins, or sugars), even after numerous sterilization cycles.
Features- Provides protection against batch cross-contamination with a pre-pressurized reference
- Measures accurately after many SIP cycles at 286° F (140° C)
- Installs easily with quick disconnects from cable-to-sensor
- Requires minimal servicing and maintenance
- Capitalizes on industry-standard PG13.5 installation connections
- Maximizes sensor accuracy with built-in temperature compensation
Specifications
Brand
BSP Connection
- Mechanical Connection: G 1-1/4"
Insertion 'U' Length
- 4.7" (120 mm)
Materials of Construction
- Insertion: 316 Stainless Steel
Measuring Range
- 0 to 14 pH
O-Ring Material
- EPDM
Operating Temperature
- 0° to 140° C (32° to 284° F)
Pressure Range
- psig: 0 to 87 (kPa: 0 to 600, bar: 0 to 6)
Sensor, Probe Connection
- PG 13.5
Sensor, Probe Type
- Pt100
Temperature Range
- Maximum
Wetted Materials
- EPDM
- Glass
