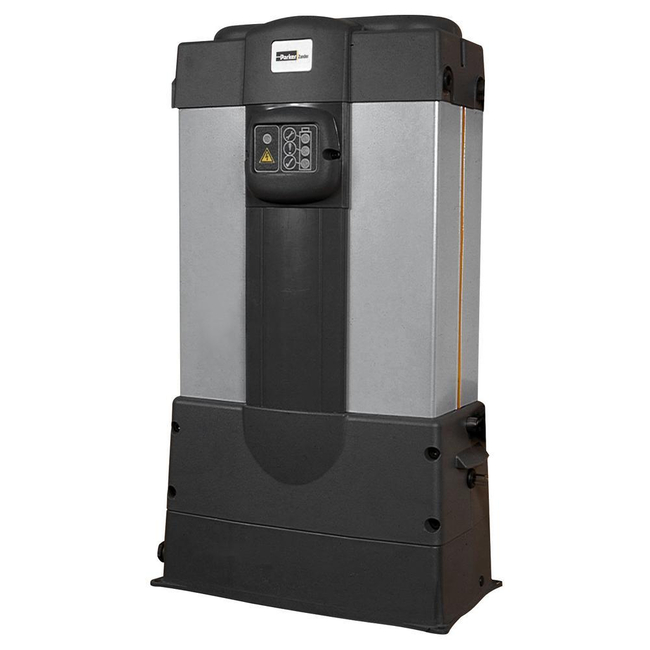

PNEUDRI MiDAS Small Flow Heatless Compressed Air Dryer
Brand: Parker HannifinSmall flow compressed air dryers providing pressure dew points of -70°C and -40°C with flow rates up to 34 m³/hr @ 7 barg.
Specifications
Brand
Connection Type
- BSPT or NPT
Depth
- 5.9" (149 mm)
Dryer Technology
- Heatless Adsorption
Electrical Requirements
- 110 or 230 V 1-Phase 50/60 Hz
Height
- 16.6" - 43.2" (422 - 1098 mm)
Maximum Ambient Temperature
- 55° C (131° F)
Maximum Flow Rate
- 3 to 20 cfm @ 100 psig
Maximum Operating Pressure
- 175 psig (12 barg)
Maximum Operating Temperature
- 50° C (122° F)
Minimum Ambient Temperature
- 1° C (34° F)
Minimum Operating Pressure
- 58 psig (4 barg)
Minimum Operating Temperature
- 5° C (41° F)
Port Connection
- 3/8"
Prefilter Type
- OIL-X General-purpose Coalescing Filter
Pressure Dew Point
- -40° C / -70° C (-40° F / -100° F) Options Available
Weight
- 11 - 28 kg (24.2 - 61.7 lb)
Width
- 11.4" (289 mm)
