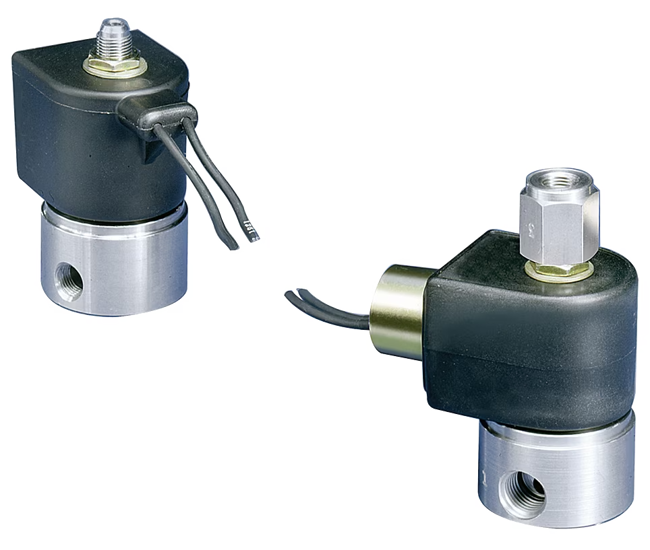

Cyclone Series.png

Pneumatic Solenoid Valve - Cyclone Series

Brand: Parker - Fluid Control Division
Add Product to My Catalog

The Cyclone series valve is robustly designed inline valve that can be oriented in various positions and rotates for ease of connection increasing efficiency in your application.

The Cyclone series valve is a 2/2 or 3/2 direct acting inline valve with ⅛ or ¼ NPT ports.

The Cyclone valves may be oriented in any position and can be mounted inline or surface mounted, using the two #10-32 x ⅜" holes provided in the bottom of the valve body.

The solenoid housing, which is available in brass or stainless steel, rotates for ease of electrical connections.

This valve is direct acting which means the coil upon energizing actuates the operator which then shifts the valve.

Coil options are grommet with lead wires, and ½" NPT conduit connection.
Features
  • Available in brass or stainless steel
  • Rotates for ease of electrical connections
  • Can be inline or surface mounted

View_Details

Specifications

Brand

Actuation

  • Solenoid Direct-Acting

Approvals & Certifications

  • CE, UL

Body Material

  • Stainless Steel, Brass

Electrical Connectors

  • Conduit, Grommet with Leadwires

Fieldbus Protocol

  • N/A

Input Supply Voltage

  • 12/24 Vdc, 120/240 Vac

Lubricant

  • Not Required

Maximum Flow

  • 0.73 Cᵥ

Maximum Flow (Q Maximum - L/min)

  • N/A

Maximum Manifold Outlets

  • N/A

Media

  • Inert Gases & Non-Corrosive Liquids

Minimum Flow

  • 0.02 Cᵥ

Minimum Operating Pressure (psig)

  • N/A

Mounting Standard

  • N/A

Mounting Style

  • Inline

Nominal Flow (Qn-L/min)

  • N/A

Number of Ports

  • 2 or 3

Number of Positions

  • 2

Overide Functionality

  • N/A

Port Size

  • ⅛”, ¼”

Port Type

  • NPT

Power Consumption

  • N/A

Pressure Range

  • Vacuum to 500 psig

Pressure Range (bar)

  • N/A

Seal Material

  • Buna-N, Fluorocarbon

Temperature Range

  • -7°C to +82°C (+20°F to +180°F)

Valve Type

  • 2-Way, 3-Way

  • General Assembly
  • Packaging
  • Conveyance
  • General Pneumatic
