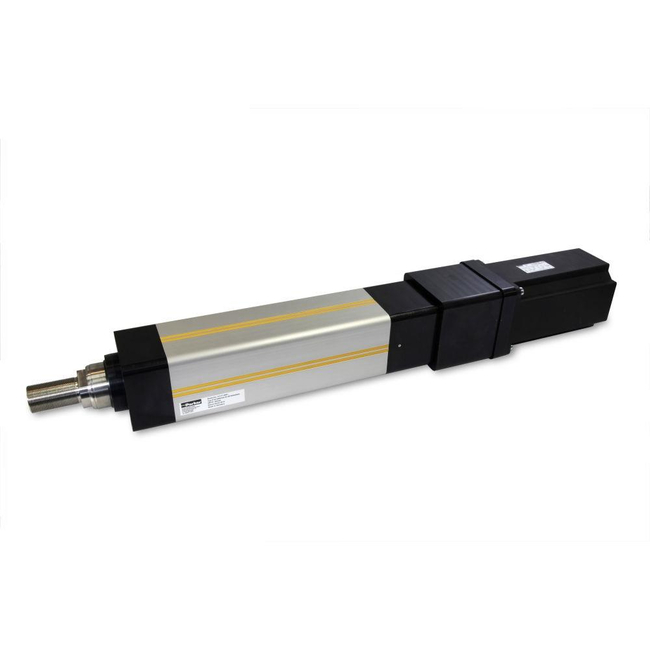

ETH032 High-Force Screw Driven Electric Cylinder/Linear Actuator with Piston Rod
Brand: Parker HannifinOffering thrust forces to 3700N, strokes to 1.0m and an ISO32 compatible flange, the ETH032 electric cylinders close the gap to pneumatic/hydraulic actuators, offering a suitable replacement with the benefits of greater control and increased reliability.
The ETH032 series 'High Force' electric cylinders are ballscrew-driven rod-style linear actuators that offer minimal Total Cost of Ownership (TCO) for reliable positioning in all industrial applications.
Compared to other fluidpowerbased cylinders these electric cylinders add programmability, the option of closed loop control, plus high thrust force, high durability and a long service life to your application.
An electromechanical system such as the ETH electric cylinder offers an economical solution thanks to its high power density and long service life, minimizing the initial and maintenance costs.
The ETH032 electric cylinders have dimensions and fixings according to ISO 15552- 12, offer thrust forces up to 3700 N and travel lengths up to 1000 mm. The standard central lubrication port helps minimize both maintenance costs and machine downtime.
Features- Precise and reliable control - programmable closed-loop electromechanical system
- Unrivalled Power Density — high forces from a small frame size
- Reduced Replacement Costs — long service life
- Reduced Maintenance Costs — thanks to lubrication access in the cylinder flange
- Reduced Noise Emission
- Reduce Design Effort — conformity with pneumatic ISO flanges (norm DIN • ISO 15552)
- Environmental Options – IP54 (standard) / IP65
- Optional ATEX certification for equipment group II, category 2 in explosive gas atmospheres
- Optimized design for safe handling and simple cleaning
- Cabling can be concealed in the profile
- Reduce Complexity — all from one source: Parker offers the complete drive train - drive/controllers, motors and gearboxes to match the electric cylinder
Specifications
Brand
Approvals & Certifications
- RoHS/ATEX 2 IIG C IIC T4 (Optional)
Corrosion Resistant Option
- Yes (Stainless Steel / Aluminum Parts Outside)
Drive Type
- Screw
IP Protection Rating
- IP54 / IP65 (Optional)
Maximum Acceleration (Inch/S2)
- 472
Maximum Acceleration (m/S2)
- 12
Maximum Speed (inch/sec)
- 39.37
Maximum Speed (m/sec)
- 1
Maximum Stroke (inch)
- 39.3
Maximum Stroke (mm)
- 1000
Maximum Thrust (Lbs)
- 832
Maximum Thrust (N)
- 3700
Operating Temperature (°C)
- -10° to +70° C
Operating Temperature (°F)
- +14° to +158° F
Position Repeatability (± Inch)
- 0.001 (Motor Inline) / 0.002 (Motor Parallel)
Position Repeatability (± mm)
- 0.03 (Motor Inline) / 0.05 (Motor Parallel)
Profile Width (mm)
- 46.5
Rod End Dimension
- ISO 32
Series
- ETH
- General Machine Building
- Material Handling and Feed Systems
- In-Plant Automotive
- Actuators for Loading Machine Tools
- Transporting and Feeding Components
- Wood and Plastic Working Industry
- Linear Handling
- Petrochemical Refining and Transportation
- Painting
- Printing Industry
- Distilleries
- Testing Equipment and Laboratory Applications
- Valve and Flap Actuation
- Material Forming
- Automated Assembly Processes
