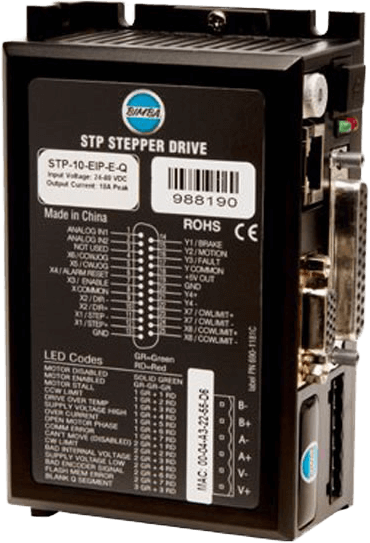

Bimba DC Drive & Programmable Controller
Brand: Bimba MeadIntelligent DC digital stepper motor drive/controllers are compatible with all Bimba DC motors.
Features include anti-resonance, torque ripple smoothing, microstep emulation, and provide accurate, highly repeatable and reliable performance for the most challenging motion profiles.
Bimba IQ® Stepper configuration software and IQ® Programmer software facilitate ease of use.
Features- Programmable drive/controller
- Match calculations, data registers and decision commands
- Up to 10A per phase capability
- 8 digital inputs, 4 digital outputs
- 2 analog inputs, ±10V range
- Ethernet/IP versions available
Specifications
Brand
Piston
- 6061-T6511 Aluminum
Square Rod
- 304 Stainless Steel
Motor Mount
- 2024-T350 Aluminum
Angular Bearing
- 52100 Steel
Rod End
- 303 Stainless Stee
Drive Nut
- Acetal
Coupler
- 17-4 PH Stainless Steel
Fasteners
- Alloy Steel and Stainless Stee
Washdown Cap
- 6061-T6511 Aluminum
O-Rings
- Buna-Nitrile
Wear Ring
- Glass-filled Teflon
Rod Bearing
- SAE 660 Bronze
Drive Screw
- 303 Stainless Steel
Retaining Rings
- Stainless Steel, Phosphate Covered Spring Steel
Pulleys
- Anodized Aluminum
Belt
- Nylon Covered, Fiberglass Reinforced Neoprene
Mounting Brackets
- 304 Stainless Steel
Trunnion Pins
- 303 Stainless Stee
R, Q, S Cap
- CF8 Cast Stainless Steel
Switch Track
- 6063-T6 Aluminum
MF Plates
- 2024 or 6061-T6 Aluminum
