EPAK-Series 2 hp LSG Unassembled Grinder System

Brand: Liberty Pumps

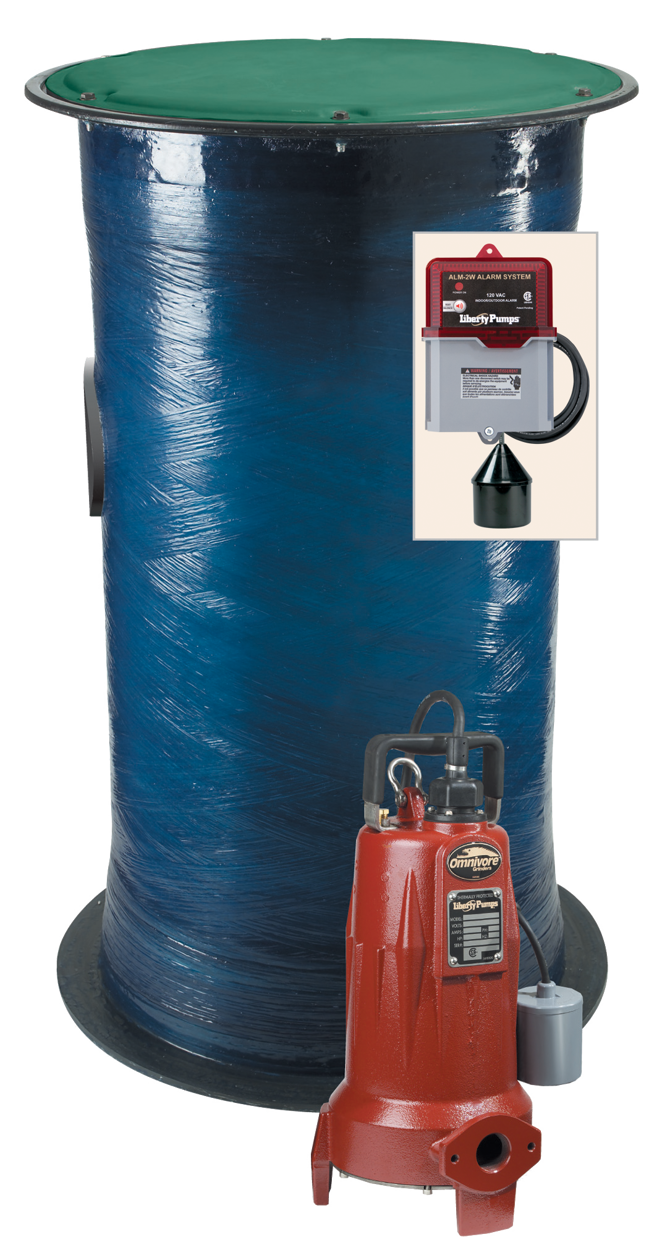

Unassembled Grinder System with alarm includes 24" and 30" diameter fiberglass basin with anti-float collar, 2 hp Omnivore® grinder pump with 1-1/4" discharge.
Features
  • Omnivore® grinder pump with new V-Slice® Cutter Technology: Recessed cutter bolt eliminates wadding and exclusion cleanout slots clears debris from under the cutter. Provides superior cutting with improved shredding performance over radial cutters. V-pattern cutter provides up to 108 alternate cuts per revolution
  • Solid fiberglass cover
  • Pre-cut internal piping (1-1/4" Schedule 80 PVC)
  • Heavy-duty check valve
  • Ball valve
  • 2" electrical conduit hub (unmounted)
  • 4" inlet seal (unmounted)
  • ALM-2W (indoor, outdoor) alarm

Specifications

Discharge Size

  • 1-1/4"

Omnivore Grinder Pump

  • 2 hp, 208-230 V, 1-Phase, 60 Hz, 15 A, 3,450 RPM

Cable Length

  • 25 ft

Cover Material

  • Solid Fiberglass

Basin Dimensions (W x H)

  • 24" x 48"
  • 30" x 36"
  • 30" x 48"

Basin Capacity

  • 94 gal
  • 110 gal
  • 147 gal

Gallons Per Cycle

  • 14 gal
  • 21 gal

Alarm

  • Indoor/Outdoor Type 3R
  • 115 V
  • Red Beacon
  • 82 db Horn
  • Test/Silence Switch
  • Auxiliary Contacts

Certifications & Approvals

  • cCSAus
  • SSPMA
