Vibranivo® - VN 4040 Vibration Level Switch
Brand: UWT GmbHApplication Area

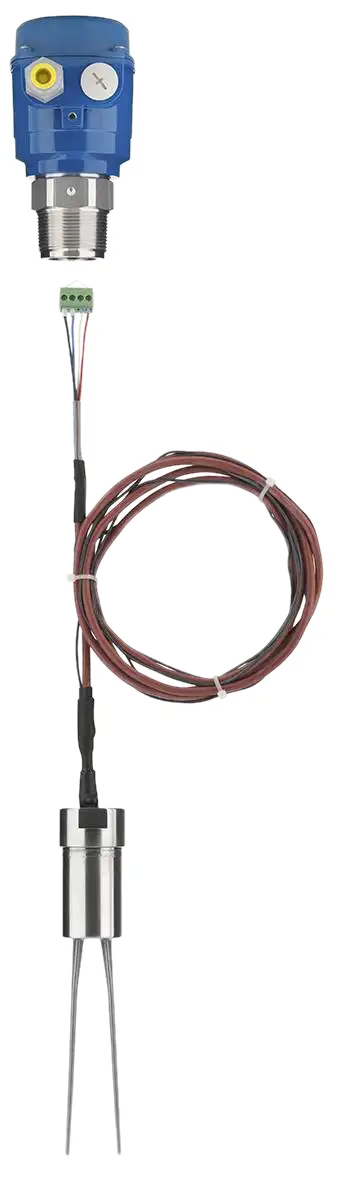

The vibrating fork Vibranivo® VN 4040 is used in storage and process vessels as a full and demand detector in many dry and free flowing bulk solids.
The measuring probe will be available as a kit for flexible tube extension with cable length of 1500 mm and 4000 mm.
Thus, the customer himself defines the length of the probe by the length of the tube.
Features- Maintenance-free, very cost-effective sensor for use in many bulk solids
- Flexibility in probe length due to self-assembly kit
- Plug and play level limit switch without calibration
Specifications
Brand
Measurement Principle
- Vibration (Fork)
Measuring Task
- Point Level Measurement
Version
- Pipe Extension (Screwed)
Medium
- Solids
Mounting Position
- Top
- Horizontal
- On a Socket
Ambient Temperature
- -40°C … +60°C (-40 … +140°F)
Process Temperature
- -40°C … +150°C (-40°F … +302°F)
Process Pressure
- -1 bar … +16 bar (-14.5 psi … +232 psi)
Minimum Sensitivity
- > 30 g/l (> 3.8 lb/ft³)
Housing Type
- Standard
Housing Material
- Aluminum
Housing Protection Rating
- IP67, NEMA Type 4X
Threaded Connection
- ≥ R 1½"
- ≥ NPT 1¼"
Flange Connection
- ≥ 2" / ≥ DN100
Hygienic Fittings
- Triclamp 2"
Wetted Materials
- Stainless Steel 1.4305 (303)
- Stainless Steel 1.4404 (316L)
- Stainless Steel 1.4581
Mechanical Load
- Tube: 100 Nm
- Oscillating Rods: 0.5 kN
Minimum Immersion Length
- 1500 mm (59")
Maximum Immersion Length
- 4 m (13.15')
Power Supply
- Universal Voltage (19...40 VDC / 19...230 VAC)
- 18...40 VDC
Signal Output
- Relay DPDT
- Transistor PNP
Approvals
- CE, General Purpose, ATEX, IEC-Ex, TR-CU, FM
Explosion Protection
- Dust Ignitionproof (Ex t)
Hygienic / Pharma
- EG 1935/2004
- FDA
Optical Indicator
- LED
Adjustment Possibility
- Adjustable Sensitivity
- Switchable Logic (Fail Safe High - Fail Safe Low)
- Chemicals
- Power
- Metal
- Building, Cement & Quarry
- Food & Beverage
- Synthetics
