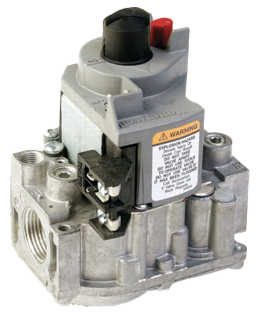

VR8300A3518/U Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve. 1/2 x 3/4". Set 3.5" WC
Brand: Resideo Technologies IncCombination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features- Control Includes Safety Shutoff, Manual Valve, Two Automatic Operators, Pressure Regulator and Pilot Adjustment.
- Compact Size.
- Provides Two Automatic Valves.
- Solenoid Operated First Automatic Valve Opens on Thermostat Call for Heat, Closes When Call for Heat Ends.
- Diaphragm-operated Second Automatic Valve Opens Under Control of Regulator; Closes if Gas or Power Supply is Interrupted.
- Meets Codes Requiring Dual Safety Shut-Off.
- Natural to LP and LP to Natural Conversion Kits Available for Standard and Slow Opening Gas Valves.
- All Adjustments, Wiring Connections and Pilot Outlet are Accessible from Top of Control.
- Adjustable Servo Regulator Effectively Maintains Almost Constant Gas Output Pressure Under Wide Fluctuations in Gas Supply Pressure.
- Compatible with Eco Connector.
- Lite-Rite: Off-Pilot-On, Lighting Sequence.
Specifications
Brand
Dimensions
- 5-3/8 in. high x 4-1/16 in. wide x 2-11/16 in. deep
- 135 mm high x 104 mm wide x 69 mm deep
Includes
- Q340 Thermocouple; Natural to LP Conversion Kit; One 3/4" x 1/2" reducer bushing; 3/4" straight flange; ECO Adaptor
Mounting
- 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Frequency
- 60 Hz
Approvals, Underwriters Laboratories Inc.
- UL Component Recognized MCCZ2.MH5323
Approvals, Canadian Standards Association
- CSA International: 112395
Approvals, Australian Gas Association
- 4717
Electrical Connections
- 1/4 in. quick-connect male terminals
Voltage
- 24 Vac
Operating Temperature Range
- 0 °F to 175 °F
- -18 °C to +79 °C
Body Pattern
- Straight-through
Opening Characteristics
- Standard Opening
Pressure Ratings
- 1/2 psi
- 3.5 kPa
Inlet/Outlet Size
- 1/2 in. x 3/4 in.
Pilot Gas Outlet
- Compression fitting for 1/4 in. OD tubing
Pressure Tapping
- 1/8 in. NPT with plug
Type of Fuel
- Natural
- LP with included conversion kit
Capacity
- At 1 in. wc p.d. - 190,000 BTUh: 30,000 BTUh minimum: 290,000 BTUh maximum Natural Gas
Pressure Regulator
- Standard
Pressure Regulator Setpoint
- 3.5 in. WC
- 0.87 kPa
Ignition Type
- Standing Pilot
- Single Stage
Documentation
Brochure
- English Sales/Promotional Materials-Brochure for VR8245, VR8300, VR8345 Universal Gas Valves pdf 629 KB
- English Sales/Promotional Materials-Cross Reference Guide for Residential Combustion Heating and Cooling Parts pdf 2.5 MB
- English Sales/Promotional Materials-Sell Sheet for VR Series Standing Pilot Gas Valves pdf 169 KB
- Laminated Sales/Promotional Materials-Residential Combustion Gas Controls Quick Reference Guide pdf 1.2 MB
Datasheet
- English Product Data and Specifications-Product Data for VR8300 Continuous Pilot Dual Automatic Valve Combination Gas Control - Legacy Product Docum pdf 691 KB
- Spanish Product Data and Specifications-Product Data for VR8300 Controles de Gas con Combinacion de Valvula Automatica Doble De Piloto Continuo pdf 527 KB
Manual
- English Installation Materials-Installation Instructions for VR8300 Continuous Pilot Combination Gas Control pdf 1.1 MB
- English Installation Materials-Installation Instructions for VR8300/VR8301 Continuous Pilot Combination Gas Control pdf 931 KB
- English Installation Materials-VR8300A,C Continuous Pilot Combination Gas Control Installation Instructions pdf 746 KB
- English Maintenance/Product Reference Materials-Residential Combustion Application Selection and Cross-Reference Guide pdf 9.0 MB
- French Installation Materials-VR8300A, C, Continuous Pilot Combination Gas Control Installation Instructions pdf 790 KB
