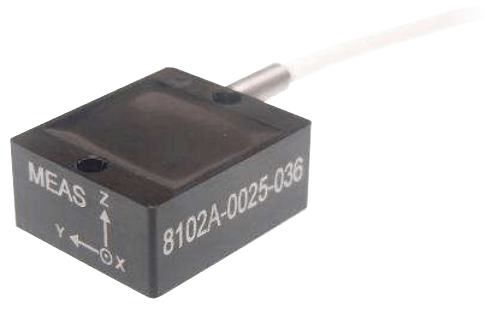

8102 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 8102 is a low cost, plug & play triaxial accelerometer.
Featuring stable piezo-ceramic crystals, the accelerometer incorporates full power and signal conditioning with a maximum current consumption of only 22 micro-amps.
The model 8102 is available from ±25 to ±6,000g ranges and provides a flat frequency response up to 6 kHz. The housing provides two holes for screw mounting and is offered in anodized Aluminum or Stainless Steel options.
Features- ±25 to ±6,000g Full Scale Ranges
- Low Cost Triaxial
- Potted Construction
- Piezo-Ceramic Shear Design
- -40° to 125°C (-40° to 257°F)
- Integral Cable for Plug & Play
1 - 12 of 5,586 Part Numbers
8102A-0025-001
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 1 Custom Length: Inches
8102A-0025-002
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 2 Custom Length: Inches
8102A-0025-003
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 3 Custom Length: Inches
8102A-0025-004
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 4 Custom Length: Inches
8102A-0025-005
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 5 Custom Length: Inches
8102A-0025-006
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 6 Custom Length: Inches
8102A-0025-007
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 7 Custom Length: Inches
8102A-0025-008
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 8 Custom Length: Inches
8102A-0025-009
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 9 Custom Length: Inches
8102A-0025-010
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 10 Custom Length: Inches
8102A-0025-011
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 11 Custom Length: Inches
8102A-0025-012
- Housing - Anodized Aluminum
- Range - ± 25 G
- Cable Length - 12 Custom Length: Inches
1 - 12 of 5,586 Part Numbers
Specifications
Accuracy
- ± 2 % of Full Scale Output - Non-Linearity
Applications
- Asset Monitoring
- Data Loggers
- Impact Monitoring
- Machine Health Monitoring
- Product R & D
- System Wake-Up Switch
Approvals & Certifications
- CE
- RoHS
Cable Material
- ETFE Insulated
Consumption
- < 22 µA
Current
- < 22 µA - Total Supply
Electrical Connectors
- 5 x 26 AWG Conductors ETFE Insulated
- M3 Screws
Enclosure, Body Material
- Aluminum - Anodized
- Stainless Steel
Environmental Protection
- IP65
Excitation Voltage
- 3-5.5 Vdc
Frequency
- > 10,000 to 30,000 Hz - Natural Frequency
- 2 to 6,000 Hz at ± 2 dB
Insulation Resistance
- > 100 megaohms at 100 Vdc
Load Impedance
- < 100 ohms - Output Impedance
Mounting
- M3 Screws
- Surface Mounting - Ground Isolation
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output Noise
- 0.008 to 0.520 G RMS - Residual Noise
- 0.07 to 32 mg√Hz at 10 Hz to 1 kHz - Spectral Noise
Seat / Seal Material
- Epoxy Sealed - Humidity
Sensitivity
- < 10 % - Transverse Sensitivity
- 0.20 to 50 mV/g at ± 30 %
Shock
- 5,000 to 10,000 G
Storage Temperature
- -40° to 125° C (-40° to 257° F)
- Asset Monitoring
- Data Loggers
- Impact Monitoring
- Machine Health Monitoring
- System Wake-Up Switch
- Product R&D
