AST Plug & Play Accelerometer, 13203CC

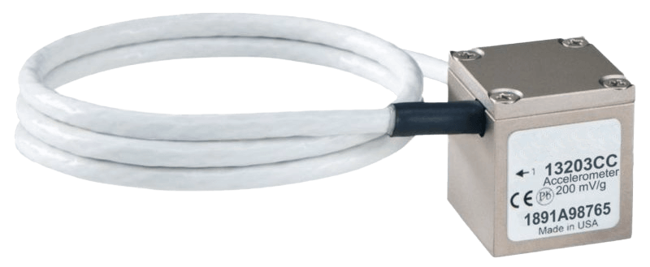

13203CC Plug & Play Accelerometer

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The 13203CC is an interchangeable and rugged uniaxial accelerometer capable of accurately measuring acceleration under demanding environmental conditions.

A tough, compact housing holds potted electronics and a shielded heavyweight cable. Its cubical form allows mounting with the sensing axis oriented in any direction. The 13203CC provides enhanced accuracy and durability features to meet the challenges of your application.

In addition to its robust construction, increased precision is achieved through improved offset and gain compensation Each axial sensor has been tested over the -40° to 85° C temperature range and has a nominal full scale output swing of ±2 Volts.

Sensors are available in various fixed sensitivities, each with a 2,500 V offset. The 13203CC can also be ordered with different bandwidths and wiring configurations.

View_Details

Specifications

Brand

Accuracy

  • 0.10 % of Full Scale Output - Non-Linearity

Approvals & Certifications

  • CE

Cable Material

  • PTFE

Circuit Protection

  • EMI/RFI Protected

Electrical Connectors

  • 22 AWG

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65

Frequency

  • 0 to 800 Hz - Frequency Response

Input

  • ± 80 V - Input Voltage Limits, Compatible with MIL-STD-704A
  • 12 mA - Input Current
  • 8.5-36 V - Unregulated DC Power (Operating)

Output

  • ± 2 Vdc - Full Scale Output Voltage
  • 0.50-4.50 V - Output Voltage Swing
  • 2,500 ± 15 mV - Zero Acceleration Output

Output Noise

  • 100 µg/√Hz - Noise Density

Sensitivity

  • ± 1 % of Full Scale Reading - Sensitivity Drift
  • 0.25 % - Transverse Sensitivity
  • 133-2,000 mV/g

Shock

  • ± 5,000 G

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Thermal Drift

  • ± 1.0 % of Full Scale Reading - Offset Drift 25° C to Tmin or Tmax

Zero Offset

  • 2.50 ± 0.015 V - Offset at 25° C Zero G Bias Level
