AST Plug & Play Accelerometer, 8811-01

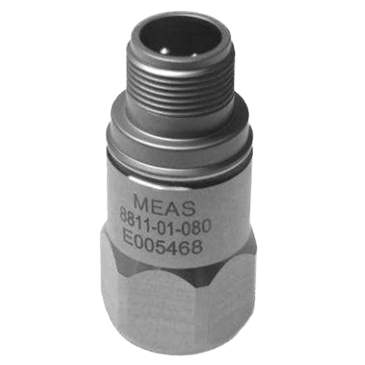

8811-01 Plug & Play Accelerometer

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The Model 8811-01 are internally shielded rugged IEPE accelerometers with custom lightning protection up to ±2.5 kV designed for harsh industrial condition monitoring where accelerometers could be exposed to lightning.

The accelerometers are available in ±5 to ±80g dynamic ranges and have a flat bandwidth up to greater than 10 kHz. The model 8811-01 accelerometer features a top exit MILC-5015 connector and is designed to operate in temperature ranges from -55°C to 120°C.
Features
  • ± 5g, ±10g, ±20g & ±80g Dynamic Ranges
  • Wide Bandwidth up to >10 kHz
  • Case Isolated, Internally Shielded
  • Hermetically Sealed, Welded
  • Annular Shear Mode
  • Reverse Wiring Protection
  • Lightning Protection

1 - 4 of 4 Part Numbers
8811-01-020
8811-01-020
  • Frequency - Standard Frequency Option - 32,000 Hz
  • Range - ± 20 G
8811-01-080
8811-01-080
  • Frequency - Standard Frequency Option - 32,000 Hz
  • Range - ± 80 G
8811LF-01-005
8811LF-01-005
  • Frequency - Low Frequency Option - 20,000 Hz
  • Range - ± 5 G
8811LF-01-010
8811LF-01-010
  • Frequency - Low Frequency Option - 20,000 Hz
  • Range - ± 10 G
1 - 4 of 4 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 1.0 % of Full Scale - Non-Linearity

Approvals & Certifications

  • CE
  • RoHS

Electrical Protection

  • Lightning Protected to 2.5 kV

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67

Frequency

  • 0.1 to 10,000 Hz
  • 20,000 to 32,000 Hz - Natural Frequency

NACE & NIST

  • NIST - Traceable Amplitude Calibration

Operating Temperature

  • -55° to 120° C (-67° to 248° F)

Output Load

  • < 100 ohms - Output Impedance

Output Noise

  • 0.00010 to 0.00040 G RMS - Residual Noise

Power Requirement

  • 2-10 mA - Excitation Current

Sensitivity

  • < 5 % - Transverse Sensitivity
  • 100-1,000 mV/g

Sensor, Probe Material

  • Ceramic

Shock

  • 2,000 to 5,000 G

Storage Temperature

  • -55° to 120° C (-67° to 248° F)

Supply Voltage

  • ± 2,500 Vac - Dielectric Strength
  • 10-13 Vdc - Bias Voltage
  • 18 to 30 Vdc - Compliance Voltage

Torque

  • 24 In/Lbs

Update Time

  • < 5 seconds - Warm-Up Time

  • Wind Tower Installations
  • Machine Monitoring
  • Industrial Applications
  • Harsh Environments
  • Gearbox Monitoring

Documentation

Data Sheets
