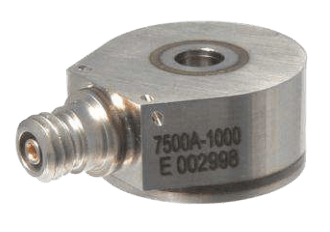

7500A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 7500A is a piezoelectric charge mode accelerometer designed for high frequency vibration and shock measurements.
The accelerometer incorporates an annular shear mode crystal that provides stable thermal response up to 260°C. The model 7500A is hermetically sealed and features the popular through hole mount installation for use with standard mounting screws.
Features- 7 pC/g to 20 pC/g Sensitivity
- Wide Bandwidth up to >15 kHz
- -73° to 260°C Operating Range
- Hermetically Sealed
- Annular Shear Mode
- Isolated Mounting Surface
- Stable Temperature Response
Specifications
Approvals & Certifications
- CE
- RoHS
Bandwidth
- > 15 kHz
Electrical Connectors
- 10-32 Coaxial Receptacle
Enclosure, Body Material
- Stainless Steel
Frequency
- 0.1 to 15,000 Hz ± 2 dB
- 1 to 12,000 Hz ± 10 %
- 30,000 to 43,000 Hz - Natural Frequency
Humidity
- Hermetically Sealed
Insulation Resistance
- > 100 megaohms
Mounting
- Through Hole (#6 Insulated Cap Screw)
NACE & NIST
- NIST - Traceable Amplitude Calibration from 20 Hz to ± 2 dB Frequency Response Limit
Non-Linearity
- ± 1 % of Full Scale Output / 1,000 G
Operating Temperature
- -73° to 260° C (-100° to 500° F)
Sensitivity
- < 5 % - Transverse Sensitivity
- 5 to 14.5 PC/g - Min.
- 7 to 20 PC/g Typical
Sensor, Probe Material
- Ceramic (Shear Mode)
Shock
- 10,000 G
Storage Temperature
- -73° to 260° C (-100° to 500° F)
Torque
- 8 In/Lbs
- Flight Testing
- Gearbox Vibration Monitoring
- High Frequency Applications
- High Temperature Applications
- Vibration & Shock Monitoring
