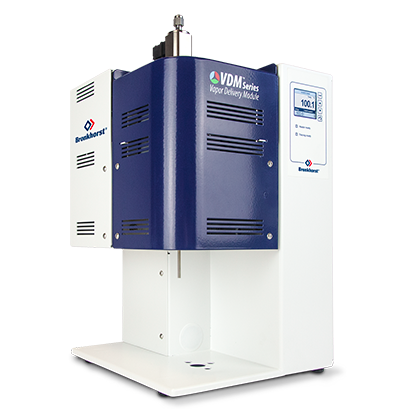

VDM Series Vapor Delivery Module

Brand: Bronkhorst
Add Product to My Catalog

With the introduction of the VDM-Series Bronkhorst offers an all-in-one vapor delivery module, incorporating the components of the CEM-System and more. Besides gas and liquid flow controllers and the temperature controlled evaporator, the VDM-Series feature integrated power supply with display (1.8” TFT) and control functions.

As an option, the unit offers local or remote trace heating temperature control. The compact, ‘plug and work’ module can generate (saturated) vapor flows within the range of 50 ml/min up to 10 l/min. It can be applied for atmospheric or vacuum processes and is capable of evaporating mixtures and even solids, dissolved in solvents.
Features
  • Provides accurate and stable vapor (mass) flow
  • Fast response
  • High reproducibility
  • Handles water, solvents, liquid mixtures
  • Flexible selection of gas/liquid ratio
  • Lower working temperature than conventional systems
  • Field proven evaporation method
  • No need for engineering or manufacturing
  • Pre-tested, safe and ready to use
  • Local or remote control (RS232 / FLOW-BUS)
  • Readout/Control panel, incl. 1.8" TFT display, alarm/signaling and counter functions

1 - 12 of 960 Part Numbers
SW-100-0-30-A-01-K
SW-100-0-30-A-01-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - None
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-A-09-K
SW-100-0-30-A-09-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - None
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
SW-100-0-30-A-11-K
SW-100-0-30-A-11-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 1/8” O.D. Compression Type
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-A-19-K
SW-100-0-30-A-19-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 1/8” O.D. Compression Type
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
SW-100-0-30-A-31-K
SW-100-0-30-A-31-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 6 mm O.D. Compression Type
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-A-39-K
SW-100-0-30-A-39-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 6 mm O.D. Compression Type
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
SW-100-0-30-A-81-K
SW-100-0-30-A-81-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 1/4” Face Seal Male
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-A-89-K
SW-100-0-30-A-89-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - 1/4” Face Seal Male
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
SW-100-0-30-A-91-K
SW-100-0-30-A-91-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - Other Connection
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-A-99-K
SW-100-0-30-A-99-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - RS-232 Communication
  • Mix Outlet - Other Connection
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
SW-100-0-30-R-01-K
SW-100-0-30-R-01-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - FLOW-BUS
  • Mix Outlet - None
  • Purge Outlet - 1/8” O.D. Compression Type
  • Plunger Seat - Kalrez
SW-100-0-30-R-09-K
SW-100-0-30-R-09-K
  • Heater Size - W-100 (1/4”OD MFC & 1/8”OD LFM Outlet) - 10 W
  • Mix Valve - Factory Standard
  • Gas & Liquid Supply - Carrier Gas & Liquid Flow Supply
  • Mains Power Supply - 220... 240 Vac
  • Tracing Control - None
  • External Communication - FLOW-BUS
  • Mix Outlet - None
  • Purge Outlet - Other Connection
  • Plunger Seat - Kalrez
1 - 12 of 960 Part Numbers

View_Details

Specifications

Brand

Approvals & Certifications

  • IEC 60320-1, C20 (Mains Supply Inlet), 60320-2-2, C13 (Female Tracing Outlet)

Maximum Heater Temperature

  • 200° C

Gas Flow Range

  • 0,05…10 ln/min Carrier Gas

Liquid Flow Range

  • 0…120 g/h Water, Precursor fluid, etc

Vapor Flow

  • 0,05…10 ln/min
