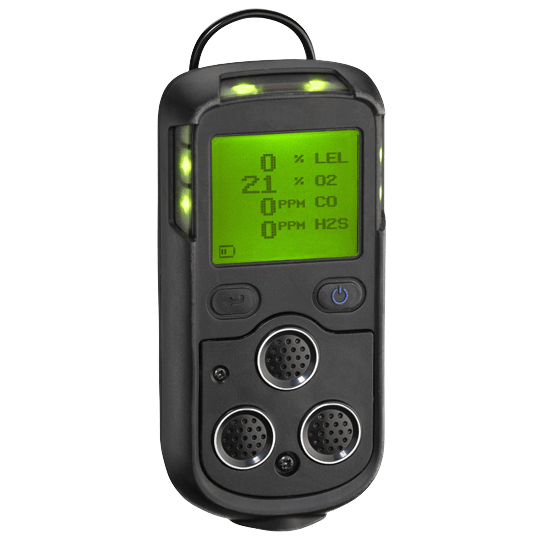

PS200 Portable Gas Detector
Brand: Detcon Inc
The PS200 Series detects all possible combinations of LEL, O2, CO, H2S, including single gas detection.
In addition to displaying all gas readings simultaneously, the user can also initiate a manual bump test anytime.
The PS200 accessory pack includes the following as standard: USB Charging / Comms Clip, Universal Power Plug, User CD-ROM, Quick Operating Instructions.
Tubing (3 m) complete with a Quick Connector is also supplied as standard with pumped instruments.
Features- Simple 1-Button Operation
- Any combination of (LEL/O2/CO/H2S)
- Audible, Visual and Vibrating Alarms
- Fully Certified
- Internal Pump (Optional)
- Lightweight
- Sensor Integrity Checking
- Robust Construction
- Ease of Maintenance
Specifications
Brand
Alarm
- Highly Visible Flashing LED, Piercing > 90 dB Audible
Approvals & Certifications
- ATEX Ex II 2 G Ex ia D IIC T4
- CE 0518
- CSA Class I, Div. 2, Grade A, B, C, D, T4
- CSA Class I, Zone 1, EX Ia D IIC, T4
- IEC 60079-29-1
- IEC Ex ia D IIC T4 Gb
- MED (0038/YY) - Module B & E
Battery Life
- < 4 Hours - Charging Time
- 0 to 14 Hours - Run Time
Communication
- Data Logging
- Standalone
- USB
Display
- LCD Display (Green & Red)
Enclosure, Body Material
- High Impact Rubberized Polycarbonate Case
Environmental Protection
- IP67
Humidity
- 0 to 95 % Relative Humidity, Non-Condensing
Indication
- LED - Power (Green), Testing (Yellow), Pass (Green), Fail (Red)
Measuring Range
- 0 to 1,000 ppm CO
- 0 to 100 ppm H₂S
- 0 to 100 % Lower Explosive Limit (LEL)
- 0 to 25 % O₂
Media
- Gas
Port
- 3-Port - Gas
Power Requirement
- 12 Vdc, 2 A
- Lithium Ion Rechargeable Battery
Response Time
- 10 to 20 seconds (T90)
- 60 seconds - Bump Testing Time
- 90 seconds - Calibration Testing Time
Sensor, Probe Type
- Catalytic Bead
- Electrochemical
Temperature Range
- -20° to 50° C (-4° to 122° F)
