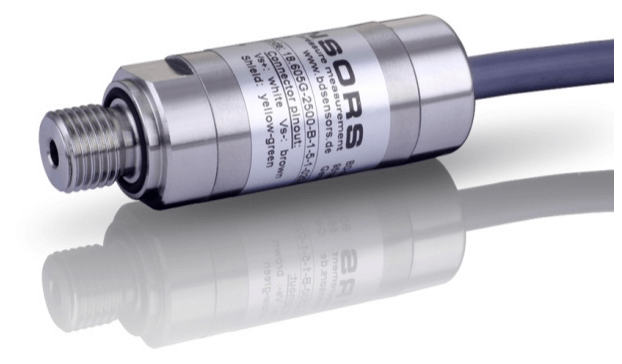

18.605 G Pressure Transmitter

Brand: BD Sensors

BD Sensors pressure transmitter.
Features
  • Piezoresistive stainless steel sensor
  • Accuracy 0.5% of FSO according to IEC 60770
  • Nominal pressure psi: 0 to 14.22 (kPa: 0 to 98.07, bar: 0 to 0.98)

Specifications

Brand

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2004/108/EC
  • IEC 60770
  • REACH
  • RoHS
  • TÜV NORD

BSP Connection

  • G 1/4” Male (DIN 3852)

Diaphragm Material

  • 316L Stainless Steel, 1.4435

Enclosure, Body Material

  • 304 Stainless Steel, 1.4301

Environmental Protection

  • IP68

Output

  • 0-10 V, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.09 to 0.98
  • kPa: 9.80 to 98.07
  • meter WC: 1 to 10
  • psi: 1.42 to 14.22
