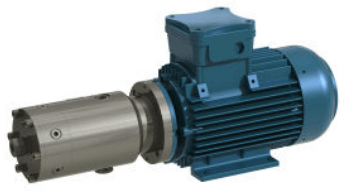

LM Oil Pump
Brand: Bifold - by RotorkBased on our proven SM pump design, the type LM hydraulic axial piston pump for hydraulic oil application has been specially designed for direct mounting to AC motors, avoiding the need for a bell housing and coupling.
A shaft version compatible with a traditional bell housing and coupling is available. The Type LM hydraulic axial piston pump is of a rotating swash plate design and can deliver pressures up to 690 bar.
Features- Rotating swash plate design
- Pressures up to psi: 10,000 (kPa: 69,000, bar: 690)
- Flows up to 17.68 l/m (4.67 USg/m)
- Improved valve design - ease of priming
- Horizontal or vertical mounting
Specifications
Brand
Approvals & Certifications
- IEC 100/112, 132, 160 Frame B34 Face Motors, 100/112, 90, 132, 160 Frame B35 & V1 Flange Motors
BSP Inlet
- 3/4” BSP Female
BSP Outlet
- 1/2” BSP Female
- 3/8” BSP Female
Cone & Thread Connection
- 3/8” Female Medium Pressure
Enclosure, Body Material
- Aluminum
NPT Inlet
- 3/4” NPT Female
NPT Outlet
- 3/8” NPT Female
