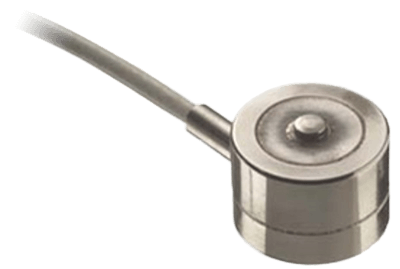

ELAF Miniature Load Cell
Brand: American Sensor Technologies Inc
The ELAF series compression and tension load cells raise the bar for high performance at low cost.
Features- Low Cost
- Optional High Level Output
- Small, Low Profile Design
- Low Noise
- Robust: High Over Range
- High Reliability
- Low Deflection
- Low Off-Axis Response
Specifications
Ambient Temperature Range
- 25° C (77° F)
Applications
- Assembly Forces
- Batch Weighing
- Hoist & Winch Loads
- Material Test
- Product Validation Testing
- Robotics End Effectors
- Theatrical Rigging Loads
- Thrust Measurements
- Tool Forces
- Weighing
Approvals & Certifications
- RoHS
Cable Length
- 5 feet (1.52 metres) Standard
Cable Material
- FEP
- PTFE
Compensated Temperature
- 20° to 80° C (68° to 176° F)
Diameter
- 0.5” (12.7 mm) - Body Style
- 0.625” (15.88 mm) - Body Style
- 1.25” (31.75 mm) - Body Style
Electrical Connectors
- Shielded Cable
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP65
Excitation Voltage
- 4.75-5.25 V - Excitation (Amplified)
- 5 V Typical - Excitation (mV Output & Amplified)
Humidity
- 0 to 95 % Relative Humidity, Non-Condensing
Hysteresis
- -0.25 to 0.25 % of Full Scale Output
Input Impedance
- 2.5 to 3.5 KilloOhms (mV Output)
- 3 kiloohms Typical (mV Output)
Insulation Resistance
- 50 megaohms at 250 Vdc
Load
- 250 % of Full Scale Output, Typical - Max.
NACE & NIST
- NIST Traceable 11-Point Calibration
Non-Linearity
- -0.25 to 0.25 % of Full Scale Output
Operating Temperature
- -40° to 120° C (-40° to 248° F)
Output
- 0 mV ± 5 % of Full Scale Output - Zero Output (mV Output)
- 0.5 - 4.5 V
- 0.5 V ± 3 % of Full Scale Output - Zero Output (Amplified)
- 10 mV/V ± 5 % of Full Scale Output at 10 V Supply - Output Span (mV Output)
- 20 mV/V ± 5 % of Full Scale Output at 5 V or 2.5 V Supply - Output Span (mV Output)
- 4 V ± 3 % of Full Scale Output - Output Span (Amplified)
Output Impedence
- 1.7-2.7 KilloOhms - mV Output
- 2.2 kiloohms Typical - mV Output
Sensitivity
- -0.03 to 0.03 % of Full Scale Output/°C, Reference to 25° C (77° F) - Thermal Sensitivity Shift
Thermal Drift
- -0.03 to 0.03 % of Full Scale Output/°C, Reference to 25° C (77° F) - Thermal Zero Shift
- Theatrical Rigging Loads
- Assembly Forces
- Weighing
- Tool Forces
- Thrust Measurements
- Batch Weighing
- Robotics End Effectors
- Product Validation Testing
- Material Test
- Hoist and Winch Loads
