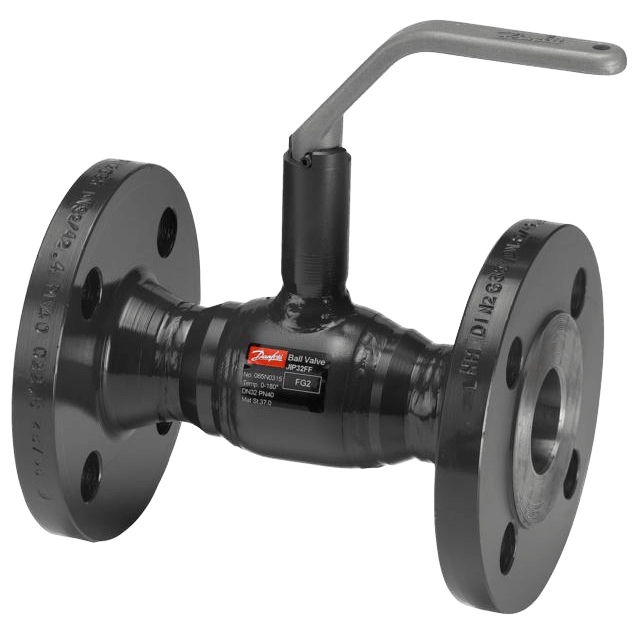

JIP-FF (Reduced Bore) Flanged Ball Valve
Brand: Danfoss
Danfoss Standard JIP™ ball valves is a range of reduced bore shut off valves developed for District Heating and District Cooling networks, with circulating medium.
The valve design makes them ideal for building installation due to:
- Energy saving: with optimum flow design valves have highest kv on the market and consequently lowest pump energy costs
- Long lifetime and optimal tightness due to design and material selection in ball seal and stem seal (carbon reinforced PTFE)
- The valves are maintainance free, besides the shut off valves in the core distribution network Danfoss offers a range of supplementary valves, e.g. hot tap valves, branching valves, twin valves and draining valves
Specifications
Brand
Approvals & Certifications
- PED Directive 97/23/EEC Modul H1
Approvals & Certifications
- OHSAS 18001
Ball Material
- Stainless Steel
Enclosure, Body Material
- Welded Body: Steel Ball Valves
Flange Material
- Steel P245 GH
Flange Size - 1-1/2” (DN 40)
- 1-1/2" (DN 40) - PN 40
Flange Size - 1-1/4” (DN 32)
- 1-1/4" (DN 32) - PN 40
Flange Size - 1” (DN 25)
- 1" (DN 25) - PN 40
Flange Size - 1/2” (DN 15)
- 1/2" (DN 15) - PN 40
Flange Size - 10” (DN 250)
- 10" (DN 250) - PN 16
- 10" (DN 250) - PN 25
Flange Size - 12” (DN 300)
- 12" (DN 300) - PN 16
- 12" (DN 300) - PN 25
Flange Size - 14” (DN 350)
- 14" (DN 350) - PN 16
- 14" (DN 350) - PN 25
Flange Size - 16” (DN 400)
- 16" (DN 400) - PN 16
- 16" (DN 400) - PN 25
Flange Size - 18” (DN 450)
- 18" (DN 450) - PN 16
- 18" (DN 450) - PN 25
Flange Size - 2-1/2” (DN 65)
- 2-1/2" (DN 65) - PN 16
- 2-1/2" (DN 65) - PN 25
Flange Size - 2” (DN 50)
- 2" (DN 50) - PN 40
Flange Size - 20” (DN 500)
- 20" (DN 500) - PN 16
- 20" (DN 500) - PN 25
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 16
- 3" (DN 80) - PN 25
Flange Size - 3/4” (DN 20)
- 3/4" (DN 20) - PN 40
Flange Size - 4” (DN 100)
- 4" (DN 100) - PN 16
- 4" (DN 100) - PN 25
Flange Size - 5” (DN 125)
- 5" (DN 125) - PN 16
- 5" (DN 125) - PN 25
Flange Size - 6” (DN 150)
- 6" (DN 150) - PN 16
- 6" (DN 150) - PN 25
Flange Size - 8” (DN 200)
- 8" (DN 200) - PN 16
- 8" (DN 200) - PN 25
Handle Assembly Material
- Steel
Materials of Construction
- Guide Pipe, Pipe Insert: Stainless Steel
- Guiding Pipe: Steel P235
- Key: Steel
- Simmerring: Rubber
- Washer: Carbon Reinforced PTFE
- Welding End, Shell: Steel P235 GH
Media
- Circulation Water
- Glycolic Water up to 50 %
Nut & Bolt Material
- Compression Nut: Steel
Packing Material
- Steel P245 GH & Steel P235 GH
Port
- Reduced
Pressure Range
- psi: 0 to 580.2 (MPa: 0 to 4, bar: 0 to 40)
Ring Material
- Carbon Reinforced PTFE - Stem Sealing Rings
- Compression Ring: Steel
- Support: Stainless Steel
Seal Retainer
- Ball: Steel P235
Spring Material
- Disc Spring: Domex 650 MC
- Pin: Steel
Stem Material
- Stainless Steel
Storage Temperature
- -40° C (-40° F) Min.
Temperature Range
- 0° to 180° C (32° to 356° F)
Valve Type
- Manual
