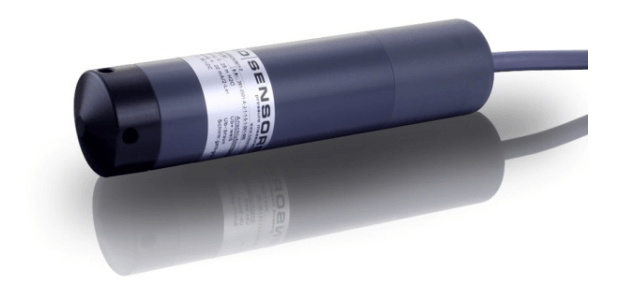

LMK 807 Level Probe

Brand: BD Sensors

The plastic submersible probe LMK 807 is designed for continuous level measurement for waste water or and different aggressive media.

Basic element of the plastic submersible probe is the flush mounted ceramic sensor, which makes cleaning easier when solid parts of the medium deposit on it.

Different cable and elastomer materials are available in order to achieve maximum media compatibility.
Features
  • Accuracy: 0.5 % FSO
  • Diameter 35 mm
  • Excellent long term stability
  • Easy handling

Specifications

Brand

Approvals & Certifications

  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
  • REACH
  • RoHS
  • TÜV

Diaphragm Material

  • Ceramic

Enclosure, Body Material

  • PVC

Environmental Protection

  • IP68

Output

  • 4-20 mA

Pressure Range

  • bar: 0.39 to 9.80
  • kPa: 39.23 to 980.7
  • meters WC: 4 to 100
  • psi: 5.68 to 142.2

  • Chemical Industry
  • Environmental Industry
