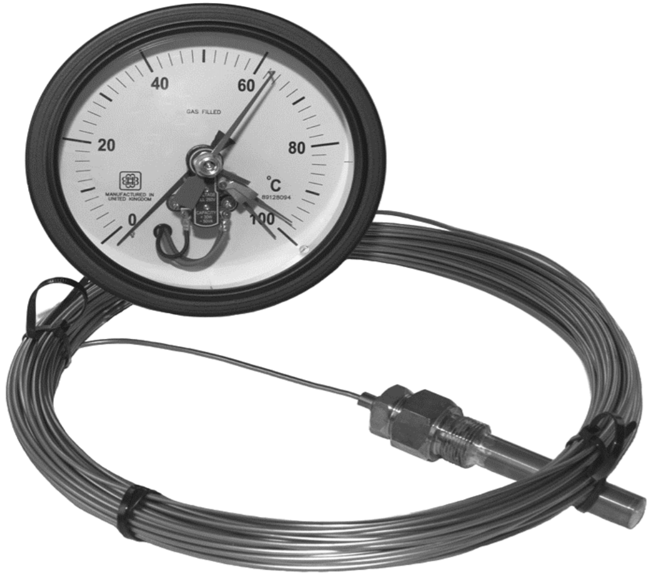

95FG/211FG Gas Filled Thermometer

Brand: Budenberg

An impressive technical specification and wide range of standard features make this thermometer the obvious choice for a wide range of process and engineering applications.

Primarily designed for the harshest of environments the model NIS is especially suitable for places where the presence of Mercury is undesirable, such as the food and nuclear industries.

Gas filled thermometers are often used in chemical and allied industries such as offshore oil & gas industries where the atmosphere is corrosive, and severe due to to weather.

Built to meet EN-837 the NIS is manufactured to compliment the Budenberg ranges of pressure gauges. We can also supply Gas filled and Bi-Metallic thermometers and are able to offer all types with thermowells.

Specifications

Brand

Approvals & Certifications

  • PED

BSP Connection

  • 1” BSP Male
  • 1/2” BSP Male
  • 3/4” BSP Male

Environmental Protection

  • IP55
  • IP66

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male

Size

  • 4" (100 mm)
  • 6" (150 mm)

Mounting

  • Surface Mounting
  • Flush Mounting

Case/Bezel Material

  • Duotone Grey Metal Finish
  • Grey DMC (Dough Moulded Compound)
  • Stainless Steel

Scale Range

  • -60° to 700° C (-76° to 1,300° F)

Bulb Material

  • 316 Stainless Steel

Bulb Diameter

  • 14.3 mm or 10.3 mm Standard

Connection Material

  • 316 Stainless Steel

Accuracy Class

  • CL:1 1.0% of FSD as Defined in EN837-1

Materials of Construction

  • Dial: White Anodised Aluminium
  • Pointer: Stainless Steel
  • Movement: 316 Stainless Steel
  • Window: 3 mm Laminated Safety Glass (Standard)
  • Window: Acrylic Plastic Option

  • Offshore Oil and Gas Industries
  • Food and Nuclear Industries
