AST Embedded Accelerometer, 3052A

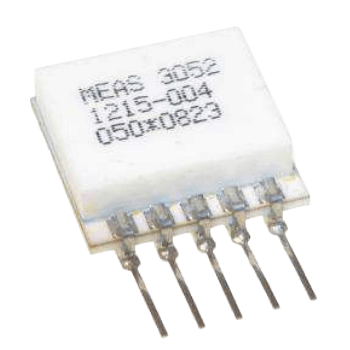

3052A Embedded Accelerometer

Brand: American Sensor Technologies Inc
Add Product to My Catalog

The Model 3052A is a silicon MEMS accelerometer with integral temperature compensation.

The accelerometer is packaged on a ceramic substrate with an epoxy sealed ceramic cover and is designed for adhesive mounting. The accelerometer is offered in ranges from ±2g to ±100g range and provides a flat frequency response to minimum 1,500 Hz.

The silicon MEMS sensor is gas damped and incorporates over-range stops for high-g shock protection. For a similar accelerometer designed for bolt mounting, see the model 3058A.
Features
  • Adhesive Mounted
  • ±1.0% Non-Linearity
  • 0° to 50° C Temperature Compensation
  • Built-in Over-range Stops
  • Low Power Consumption

1 - 6 of 6 Part Numbers
3052A-002-P
3052A-002-P
  • Range - ± 2 G
  • Electrical Connection - Pins
3052A-005-P
3052A-005-P
  • Range - ± 5 G
  • Electrical Connection - Pins
3052A-010-P
3052A-010-P
  • Range - ± 10 G
  • Electrical Connection - Pins
3052A-020-P
3052A-020-P
  • Range - ± 20 G
  • Electrical Connection - Pins
3052A-050-P
3052A-050-P
  • Range - ± 50 G
  • Electrical Connection - Pins
3052A-100-P
3052A-100-P
  • Range - ± 100 G
  • Electrical Connection - Pins
1 - 6 of 6 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 1 % of Full Scale Output - Non-Linearity

Applications

  • Embedded Applications
  • Impact & Shock Testing
  • Machinery
  • Motion Control
  • Transportation Measurements
  • Vibration & Shock Monitoring

Approvals & Certifications

  • CE
  • RoHS

Compensated Temperature

  • 0° to 50° C (32° to 122° F)

Constant Acceleration

  • ± 2 to ± 100 G

Enclosure, Body Material

  • Ceramic

Environmental Protection

  • IP61

Excitation Voltage

  • 2.7-12 Vdc

Frequency

  • 0 to 1,300 Hz
  • 700 to 6,000 Hz - Natural Frequency

Insulation Resistance

  • > 100 megaohms

Mounting

  • Adhesive or Solder

NACE & NIST

  • NIST

Operating Temperature

  • -40° to 125° C (-40° to 257° F)

Output

  • ± 0.06 Vdc - Full Scale Output Voltage
  • ± 2 mV - Zero Acceleration Output

Output Noise

  • 10 µV RMS

Resistance

  • 1200 to 6500 ohms

Sensitivity

  • < 3 % - Transverse Sensitivity
  • ± 0.060 %/°C - Thermal Sensitivity Shift
  • 0.24 to 16 mV/g

Shock

  • 3,000 to 5,000 G

Storage Temperature

  • -40° to 125° C (-40° to 257° F)

Thermal Drift

  • ± 0.060 % of Full Scale Output/°C
