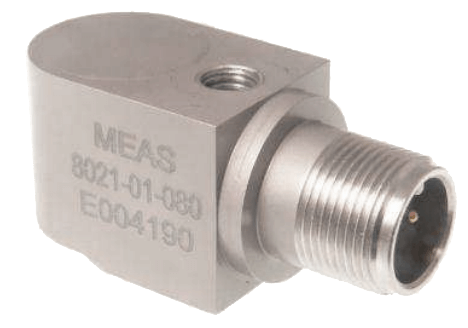

8021-01, 8022-01 Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The Model 8021-01 & 8022-01 are internally shielded rugged IEPE accelerometers designed for harsh environments.

The accelerometers are available in ±10g, ±80g & ±500g dynamic ranges and have a flat bandwidth up to greater than 12 kHz. The model 8021-01 features a side exit MIL-C-5015 connector while the model 8022-01 features an integral cable. The units are hermetically sealed and are designed to operating in temperature ranges from -55° to 125°C.
Features
  • ±10g, ±80g & ±500g Dynamic Ranges
  • Wide bandwidth up to 12 kHz
  • Case Isolated, Internally Shielded
  • Hermetically Sealed, Welded
  • Annular Shear Mode
  • Reverse Wiring Protection
  • Stable Temperature Response

Specifications

Accuracy

  • ± 1 % of Full Scale - Non-Linearity

Approvals & Certifications

  • CE
  • RoHS

Current

  • 2-10 mA - Excitation Current

Enclosure, Body Material

  • Stainless Steel

Frequency

  • 0.5 to 15,000 Hz
  • 28,000 to 42,000 Hz - Natural Frequency

Insulation Resistance

  • > 100 megaohms at 100 Vdc

NACE & NIST

  • NIST

Operating Temperature

  • -55° to 125° C (-67° to 257° F)

Output Load

  • < 100 ohms

Output Noise

  • 0.00005 to 0.0003 G RMS - Residual Noise

Sensitivity

  • < 5 % - Transverse Sensitivity

Sensor, Probe Material

  • Ceramic - Sensing Element

Shock

  • 5,000 G

Storage Temperature

  • -55° to 125° C (-67° to 257° F)

Supply Voltage

  • 18-30 Vdc - Compliance Voltage
  • 8-12 Vdc - Bias Voltage

Temperature Effect

  • ± 5 %

Torque

  • 24 In/Lbs

Update Time

  • < 1 second - Warm-Up Time

  • Gearbox Monitoring
  • General-purpose Usage
  • Harsh Environments
  • Industrial Applications
  • Machine Monitoring
