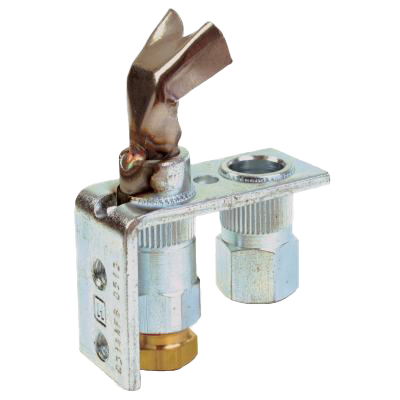

Q314A6102/U Standing Pilot Burner for Natural Gas with a BCR-18 and BBR-10 Orifice - Right Single-tip Style
Brand: Resideo Technologies Inc
Non primary-aerated, insert orifice type pilot burner for main burner ignition. Used with Q309, Q340, Q390 thermocouples or Q313 thermopiles.
Features- Variety of Mounting Brackets Available
- Single Tip Style
- Variety of Tip Directions to Provide Desired Flame Pattern.
- Interchangeable, Color-coded Orifices can be Ordered to Convert Between Natural and LP Gas
Specifications
Brand
Includes
- BCR18 and BBR-10 orifices. Special mounting bracket with screws to convert "B" bracket to "A" bracket.
Mounting
- Bracket Style B; Includes Bracket A adapter
Type of Gas
- Natural
- LP
Approvals, Canadian Gas Association
- CSA International: 112395
Aeration
- Non-primary
Compression Fitting Size
- 1/4 in.
Compression Fitting Length
- 0.65 in.
Orifice
- BCR-18 (0.018 in.) / BBR-10 (0.010 in.) Packed
Tip Style
- Target
Direction of Front Tip
- (K) Right
- Pilot Burner for Standing Pilot Applications
Documentation
Brochure
- English Sales/Promotional Materials-Brochure for Q314U, Q345U, Q348U, Q3451U Universal Pilot Burner pdf 518 KB
- English Sales/Promotional Materials-Cross Reference Guide for Residential Combustion Heating and Cooling Parts pdf 2.5 MB
- Laminated Sales/Promotional Materials-Residential Combustion Gas Controls Quick Reference Guide pdf 1.2 MB
Manual
- English Installation Materials-Installation Instructions for Pilot Burner Replacement Orifices pdf 402 KB
- English Installation Materials-Q314 and Q327A Pilot Burners Installation Instructions pdf 138 KB
- English Installation Materials-Q314, Q324, Q327, Q350 and Q380 Pilot Burners Installation Instructions pdf 859 KB
