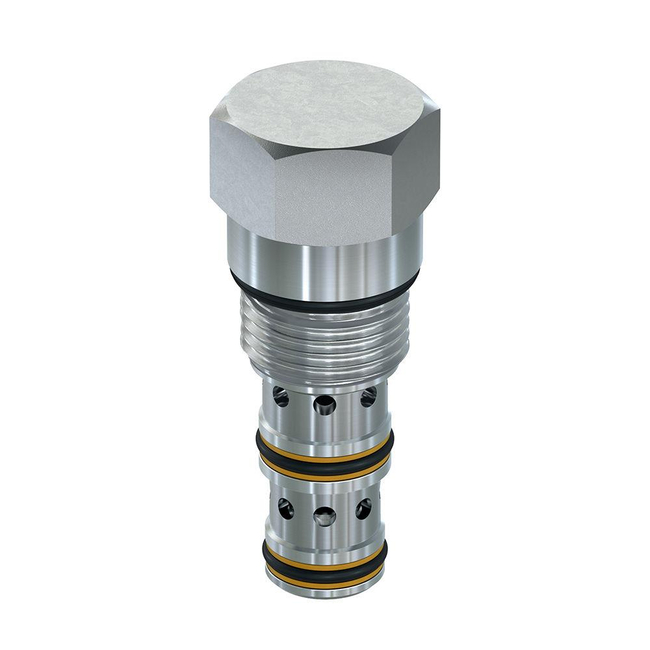

Parker Hannifin 2-Way Pilot Operated Directional Control Valve

2-Way Pilot-Operated Directional Control Valve

Brand: Parker Hannifin
Add Product to My Catalog

Parker’s 2-way high-response valves with shut-off valve series TEP in cartridge design are particularly suitable for demanding controlled and closed loop applications where high flow has to be precisely controlled at highest dynamics.

TEP valves have a 2-stage design consisting of a DFplus pilot valve and a main stage with poppet and LVDT.

Additionally, they are equipped with a direction control valve for shutting off the pilot system.

The shut-off valve can be ordered with position control optionally.
Features
  • High precision – for high quality products, minimum scrap rate and long machine lifetime
  • Extremely fast step response – shortens material processing and thus cycle times
  • Short delivery time – no warehousing necessary
  • Active pilot operated 2-way high-response valve with shut-off valve
  • Flow directions A-B and B-A
  • Cavity and mounting pattern according to ISO 7368
  • Completely mounted and adapted unit with integrated electronics
  • Fail save position at electrical and/or hydraulic power down
  • 8 sizes
  • Shut-off function

Specifications

Brand

Cavity Size

  • C10-3, C10-4

Drain Option

  • Internal, External

Filtration Ratings

  • ISO 4406: 1999 Code 18/16/13

Flow Direction

  • 2-3 or 3-2

Installation Torque (Lbs/Ft)

  • 37

Installation Torque (Nm)

  • 50

Leak Rate (cc/min)

  • 50 @ 1450 psi (100 bar), 100 @ 1450 psi (100 bar), 55 @ 1450 psi (100 bar)

Maximum Inlet Pressure (bar)

  • 420

Maximum Inlet Pressure (psi)

  • 6000

Nominal Flow (gpm)

  • 10, 16, 12

Nominal Flow (Lpm)

  • 40, 60, 47

Operating Temperature (°C)

  • -34° to +121° C, -26° to +204° C

Operating Temperature (°F)

  • -30° to +250° F, -15° to +400° F

Pilot Option

  • External

Rated Flow (gpm)

  • 21, 22

Rated Flow (Lpm)

  • 80, 84

Rated Fluid Viscosity (CSt)

  • Mineral-based or Synthetic with Lubricating Properties at Viscosities of 45-2000 SSU (6 to 420 cSt)

Seal Material

  • Nitrile, Fluorocarbon

Sealed Pilot

  • No, Yes

Switching Pressure (bar)

  • 5, 10, 7.7

Switching Pressure (psi)

  • 73, 145, 112

Type / Configuration

  • Normally Open-Pilot to Close, Normally Closed - Pilot to Open

Valve Material

  • All Parts Steel. All Operating Parts Hardened Steel

Weight (kg)

  • 0.15, 0.17

Weight (Lbs)

  • 0.33, 0.37

  • Industrial
  • Molding
  • General presses
  • Injection molding
  • Die cast
