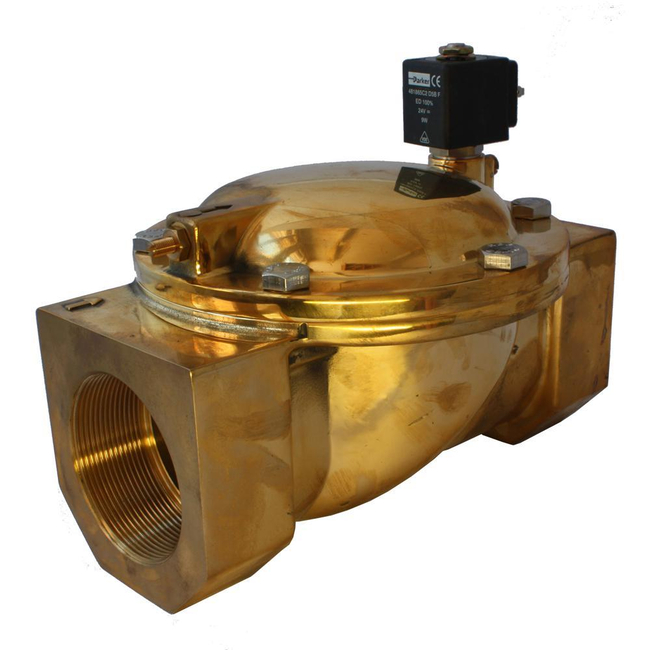

Parker 2-Way Normally Closed, 3" General-Purpose Solenoid Valves
Brand: LuciferParkers' 2-Way Normally Closed G 3" Solenoid Valves are used in a wide variety of applications with or without pressure differential.
Ideally suited for air, liquids and gases, these valves are mainly available with brass or stainless steel body associated to a large range of sealing materials offering vast chemical compatibilities.
Features- Wide variety of applications
- Ideally suited for air, liquids and gases
- Brass or stainless steel body
- Large range of Sealing materials for all general purpose fluid control applications
- Vast chemical compatibilities
Specifications
Brand
Actuation Type
- Pilot Operated
Body Material
- Brass
Coil Specifications Met
- IP65
Coil Type
- Coil for DIN Plug Connection, 32 mm (481865)
Flow Coefficient 1
- 80 m³/h
- 1334 L/min
Flow Coefficient 2
- N/A
Function
- Normally Closed
Input Voltage
- 220-230 Vac / 50 Hz or 24 Vdc
Maximum Fluid Temperature
- 90° C
Maximum Pressure Differential
- 10 (AC) bar
- 10 (DC) bar
Media
- General-purpose for All Liquids
Minimum Fluid Temperature
- -10° C
Minimum Pressure Differential
- 0.2 bar
Number of Ports
- 2
Orifice 1 Size
- 75 mm
Orifice 2 Size
- N/A
Port Size
- 3 inch
Port Type
- BSP
Power Consumption
- Up to 9 Watts
Seal Material
- NBR
Series
- General Purpose Solenoid Valves
Valve Type
- 2-Way
- Compressors
- Water dispensing & purification
- Cooling systems
- Sterilizers
- Analyzers and diagnostic equipment
- Medical and dental devices
- Welding equipment
- Lubrication equipment
- Beverage dispensing & vending machines
- Oil burners
- Humidification and misting equipment
- Mobile equipment
- Textile and dry cleaning machines
- Irrigation
