Emerson Appleton Receptacle, DBR

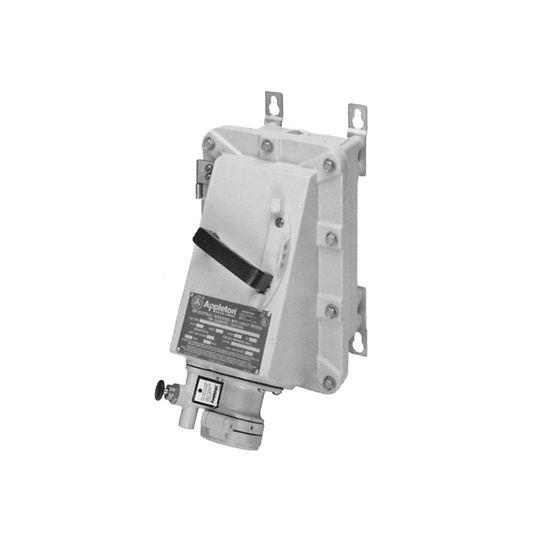

Appleton™ DBR 30, 60, 100 and 150 Amp Series Receptacles

Brand: Appleton
Add Product to My Catalog

DBR 30, 60, 100 and 150 Amp Series Receptacles incorporate your choice of an interlocked circuit breaker or disconnect switch along with explosionproof and dust-ignitionproof protection.

The interlocked circuit breaker provides connect and disconnect operating functions as well as short circuit and thermal time delay overload protection, safeguarding valuable equipment against expensive damage.

The interlocked disconnect switch provides safe connection and disconnection.
Features
  • EBRH and DBR: interlocked disconnect switch provides safe connect and disconnect operation at 30, 60 or 100 Amp, 600 Vac maximum. Two or three pole, non-fused motor circuit switch. EBRH permits safe operation in Class I, Group B as well as Class I, Groups C and D, Class II, Groups F, G, and Class III (DBR in Class II and III only).
  • EBR and DBR: interlocked circuit breaker provides interlocked connect and disconnect operation as well as short circuit and thermal time delay overload protection.
  • To operate, insert plug (which automatically locks into receptacle) and turn Breaker Handle to ON position. To remove plug, turn Handle to OFF position, lift Plug Release Knob and pull plug out. Energized receptacle contacts deeply recessed to reduce danger of accidental touching.
  • Style 2 (shell and extra pole) grounding.
  • Spring door keeps dust out of receptacle when plug is not in use. Screw cap also supplied.
  • Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact.
  • Contacts have beryllium copper wire springs.
  • Plug mechanical cable clamps prevent strain on cables – they meet or exceed UL strain relief pull-out requirements.
  • Neoprene bushing compressed by cable collar prevents entrance of water.
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking.
  • 1-1/2 NPT tapped conduit openings; one top two bottom.
  • ACP and CPH plug fits Powertite™ Series hazardous location EBR, EBRH and DBR receptacles.

Specifications

Brand

Voltage

  • 120/240 / 480 / 600 Vac or 250 Vdc

Amperage

  • 30, 60, 100 or 150 A

NEC Certifications and Compliacnes

  • UL Standard: UL 1010 (UL 1203), UL 894, UL 1682, UL 1686

Materials & Finishes

  • Insulating Blocks: Fiber Glass Reinforced Polyester
  • Receptacles, Mounting Box, Covers & Plug Housings: Copper-Free (4/10 of 1 % Max.) Aluminum with Epoxy Powder Coat

Number of Poles

  • 3 or 4

Number of Wires

  • 2 or 3

Plug Cable Diameter

  • 0.390" - 1.375”
  • 0.500" - 1.250" to 1.09" - 2.187"

Mounting Box Entries

  • Feed-Thru

Horsepower Ratings

  • 1, 1.5, 2, 3, 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60 or 75 hp
