Operator Station OS IT-587

Ambient Conditions

• Ambient temperature operation - -20 °C … +55 °C
• Ambient temperature operation 1 - -30 °C … +55 °C with heater version O30
• Cold start temperature - -10 °C
• Storage temperature - -30 °C … +70 °C
• Temperature note 1 - The O30 version is only available for the AC version devices !
• Temperature note 2 - Operating temperature +55 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
• Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may last up to 3 hours.
• Temperature note general - The temperature details apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.

Components

• Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad

Display

• Backlight - LED Technology
• Backlight service life - 50 000 h at +20 °C
• Display brightness - 300 cd/m²
• Display contrast - 1000:1
• Display dimensions - 16:10
• Display resolution - WUXGA
• Display size centimetres - 61
• Display size inch - 24
• Display version - TFT Colour display
• Display version 2 - 16.7 million colours
• Front plate (display) - Aluminium
• Total pixels - 1920 x 1200
• Touch screen - optional, resistive
• Touch screen technology - 5-wire glass or membrane touch

Electrical Data

• Battery buffered - > 5 years
• Capacitor buffered - at least 4 days
• Connections - via standard plug
• Data cable length - max. 100m
• Data memory - 64 GB
• Ethernet / Data - 10/100Base-TX
• Frequency range - 50 - 60 Hz
• Graphics controller - integrated Intel Gen. 7 HD Graphics
• Image - Remote Firmware
• Interface Audio - 1 x Audio Line out
• Interface Serial - 1 x RS-232
• Interface USB - 2 x USB (Hub) 1 x USB (Root) 2 x USB (Hub) (keyboard, pointing device)
• Language support - via operating system
• Max. input voltage Um - 250 VAC
• Memory technology - SSD solid state flash drive
• Operating system - Windows 10 IoT Enterprise
• Plug version USB - USB-A connector
• Power consumption AC 1 - 1 A
• Power consumption DC - 3 A
• Processor details - Intel Bay Trail (BT); 1.91 GHz; quad core
• Processor type - ATOM E3845
• Protection fuse AC - 5 AT
• Protection fuse DC - 5 AT
• RAM - 4 GB
• Rated operational power - typically 35 W / max. 150 W (typically 119 BTU / max. 510 BTU)
• Rated operational voltage AC - 230 V
• Rated operational voltage DC - 24 V
• Real-time clock - yes
• Real-time clock data buffer - Lithium battery and capacitor buffered, maintenance-free
• Voltage range AC - 100 - 240 V
• Voltage range DC - 20 - 30 V
• WLAN - optional via USB

Explosion Protection

• Application range (zones) - Non-Ex

General

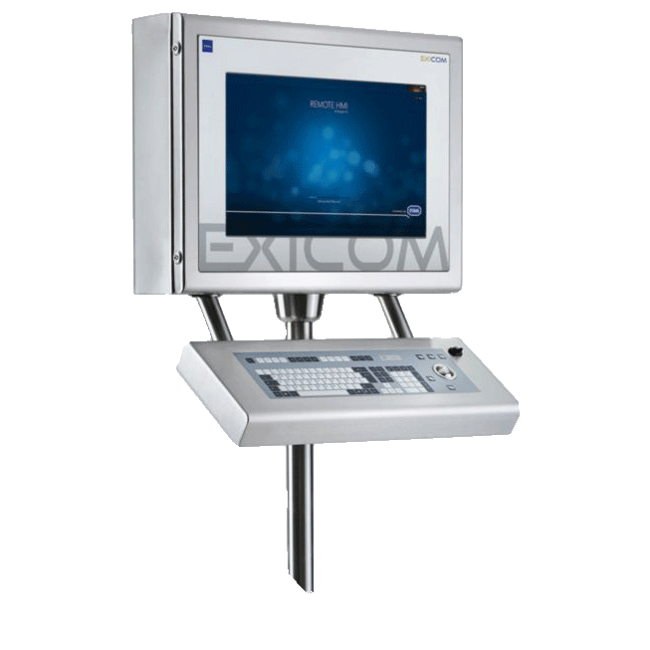

• Functional Description - The OS IT-587 HMI series includes Thin Client Operator Stations for safe areas. Their brilliant 24" WU widescreen displays with a resolution of 1920 x 1200 pixels (format 16:10), and are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Country-specific keyboards, pointer instruments and RFID and barcode scanners are useful accessories making work easier and extending functionality. Data is transmitted via Ethernet as 10/100Base-TX via CAT5 up to 100 m
• Highlights - Thin Client Operator Station, 24"WU display, 1920 x 1200 Stainless steel enclosure IP66, optional acc. to GMP, for installation in safe areas Optional resistive glass or foil touch screen Data is transmitted via Ethernet as 10/100Base-TX via CAT5 up to 100 m
• HMI type - Operator station
• Product description - 24" Thin Client
• Product Description - Thin Client SERIES 500 Device Platform Manta
• Product Type - OS IT-587-TX
• Series - Product Series OS IT-587
• Technology - Remote HMI Thin Client

HMI General

• WebCode - IT587A

Mechanical Data

• Breather - optional
• Dimensions (WxHxD) - 740 mm x 872 mm x 400 mm
• Ingress protection - IP66
• Material back - Stainless steel
• Material front - Aluminium / stainless steel
• Mechanical data note - The mechanical data apply to an FR enclosure with display and keyboard. Other enclosure types as well as any additional built-in or added components may have an impact on / change these.
• Weight - 42.5 kg

Mounting / Installation

• Enclosure type - Stainless steel enclosure (FR) optional GMP / clean room (CFR)
• Mounting option - Wall, elbow, stand
