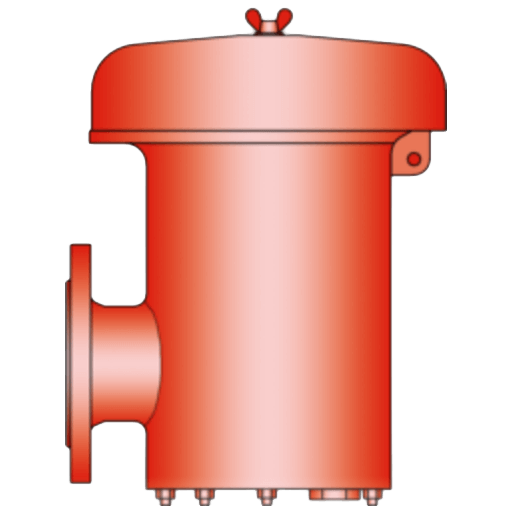

PV/EBR Pressure or Vacuum Relief Valve
Brand: PROTEGOThe deflagration-proof and endurance burning-proof PV/EBR type Protego valve is a highly developed combined pressure/vacuum relief valve for high flow capacities with an integrated flame arrester.
It is primarily used as a safety device for flame transmission proof in-and outbreathing on tanks, containers and process engineering apparatus.
The valve offers reliable protection against excess pressure and vacuum, prevents the inbreathing of air and product losses almost up to the set pressure and also protects against atmospheric deflagration as well as endurance burning if stabilized burning occurs.
The Protego lame arrester unit is designed to achieve minimum pressure drop with maximum safety.
Protego PV/EBR valves are available for substances from explosion groups IIA to IIB3 (NEC group D to C MESG ≥0.65 mm).
Features- Selecting set pressure close to relieving pressure results in product loss reduction
- More design flexibility through higher reseating pressures; vents reseat when conventional vent is still discharging
- The valve disc is guided within the housing to protect against harsh weather conditions
- High performance seal reducing product loss below EPA's 500 ppm rule preventing environmental pollution
- Can be used as protective system according to ATEX in areas subject to explosion hazards
- High flow capacity through large FLAMEFILTER cross-section, results in low pressure drop
- FLAMEFILTER provides protection against atmospheric deflagration and endurance burning
- FLAMEFILTER integrated into the valve saves space and weight
- FLAMEFILTER protected from clogging caused by product vapors
- Flame transmission proof condensate drain
- Maintenance friendly design
- Modular design enables individual FLAMEFILTER and valve pallets to be replaced
- Special design with lifting gear can be purchased
Specifications
Brand
Approvals & Certifications
- ATEX
- CEN
- IEC
- NEC Groups C, D MESG ≥ 0.65 mm
Approvals & Certifications
- EN 14015
- ISO 28300 (API 2000), ISO 6358, ISO 16016
- TÜV (Technischer Uberwachungsverein)
Diaphragm Material
- FEP
Enclosure, Body Material
- Stainless Steel
- Steel
Environmental Protection
- Explosion-proof Groups IIA to IIB3
Flange Size - 3” (DN 80)
- 3” (DN 80) - 150# ASME B16.5
Flange Size - 4” (DN 100)
- 4” (DN 100) - 150# ASME B16.5
Flange Type
- Raised Face (RF)
- Smooth Finish
Materials of Construction
- Heating Jacket, Weather Hood, Flamefilter Cage, Spacer, Valve Pallet: Stainless Steel
- Heating Jacket, Weather Hood: Steel
- Valve Pallet: Aluminum
Operating Temperature
- 0° to 60° C (32° to 140° F)
Pressure Range
- psi: 0.029 to 3.046 (kPa: 0.2 to 21, Mbar: 2 to 210)
- psi: -0.725 to -0.050 (kPa: -5 to -0.35, Mbar: -50 to -3.5) - Vacuum
Process Temperature
- Maximum
Seat / Seal Material
- Seal: FEP
- Seal: Metal
- Seal: PTFE
- Valve Seat: Stainless Steel
