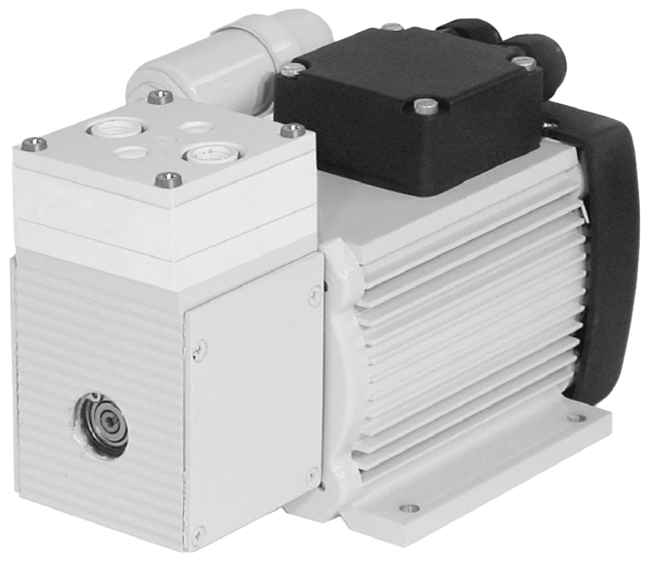

MP30 Analytical Diaphragm Pump

Brand: M&C TechGroup Germany GmbH

The pump MP30 has a PVDF-head. All sample contacting parts are made of PVDF, PTFE and FFPM.

The pump works absolutely lubricant free, so gases remain analytically unchanged. Due to a special diaphragm and valve system, the pump operates maintenance-free.

The MP30 is available in 230 V or 115 V. The standard MP30 is designed for normal applications at a maximum gas flow of 7 l/min.
Features
  • Corrosion resistant
  • 100% lubricant free
  • Gas tight
  • Maintenance free
  • Long service life
  • Small dimensions, high performance

1 - 2 of 2 Part Numbers
02 P 1500
02 P 1500
  • Version - 230 V / 50 Hz
02 P 1500A
02 P 1500A
  • Version - 115 V / 60 Hz
1 - 2 of 2 Part Numbers

Specifications

Ambient Temperature Range

  • 5° to 40° C (41° to 104° F)

BSP Inlet

  • G 1/8”

BSP Outlet

  • G 1/8”

Capacity

  • Maximum

Consumption

  • Current Consumption: 0.45 A - Version MP 30 230 V / 50 Hz
  • Current Consumption: 0.7 A - Version MP30 115 V / 60 Hz
  • Power Consumption: 70 W

Diaphragm Material

  • Material of Sample Contacting Parts: PTFE

Environmental Protection

  • IP54 EN 60529

Flow Rate

  • 0 to 500 L/hr

Materials of Construction

  • Material of Sample Contacting Parts (Pump Head): 316Ti Stainless Steel
  • Material of Sample Contacting Parts (Pump Head): PVDF
  • Material of Sample Contacting Parts (Valves): FFPM

Operating Pressure

  • psia: 2.901 to 36.26 (kPa: 20 to 250, bar: 0.2 to 2.5)

Operation

  • Operation Mode: 100 % Continuous Duty, Start of the Pump Only without Pressure

Storage Temperature

  • -15° to 60° C (5° to 140° F)

Temperature Range

  • Sample Temperature: 5° to 40° C (41° to 104° F)
