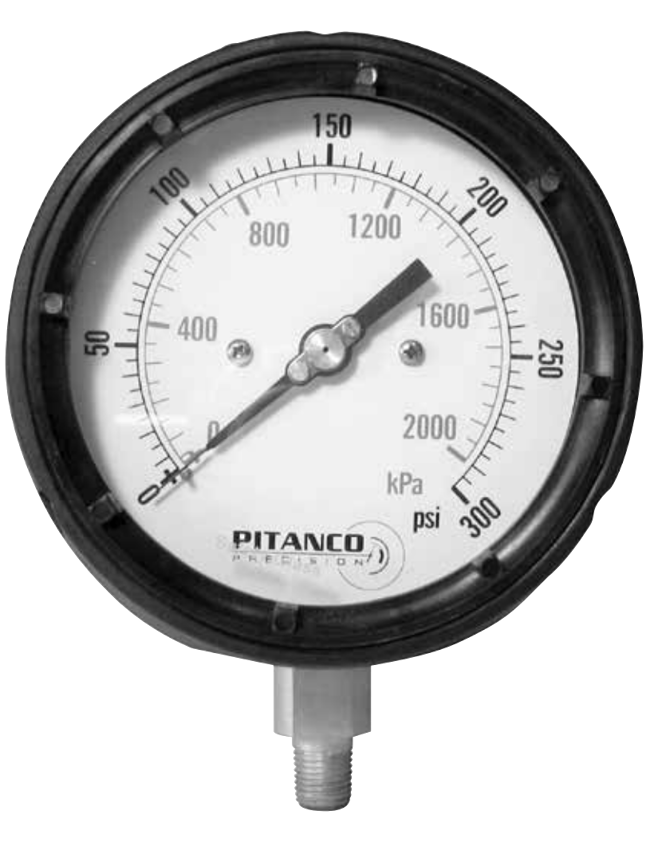

Model 450PB/450PSS Process Gauge

Brand: Pitanco Precision

Used in refineries, chemical plants, industries, etc. Where operator safety and accuracy are very important factors.

Specifications

Case

  • 4-1/2” (115 mm), Reinforced Black Thermoplastic

Dial

  • White Aluminum with psi Graduations in Black, kPa in Blue

Ring

  • Reinforced Black Thermoplastic

Lens

  • Acrylic

Pointer

  • Black Anodized Aluminum

Connection

  • 1/4” NPTM Bottom
  • 1/4” NPTM Lower Back Mount

Wetted Parts

  • Brass for PB
  • 316 Stainless Steel for PSS

Bourdon Tube

  • Phosphor Bronze for PB
  • 316 Stainless Steel for PSS

Maximum Process & Ambient Temperature

  • -40° to 200° F / -40° to 93° C dry Standard model
  • 32° to 160° F / 0° to 70° C glycerin filled

Operating Pressure

  • Maximum 75 % of Full Scale Value

Overpressure Limit

  • 25 % Over Full Scale Value

Accuracy

  • ASME B40.100 (B40.1), Grade 2A ± 0.5 %
