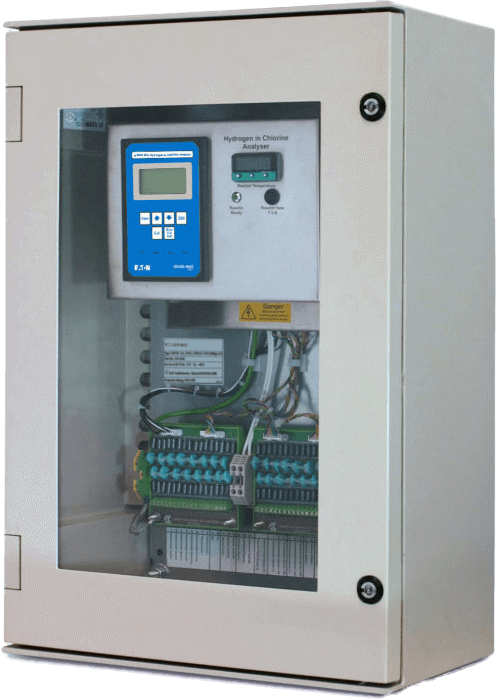

KK650 Hydrogen and Chlorine Analyser
Brand: MTL InstrumentsThe KK650 is designed specifically for the chlor-alkali industry.
Chlorine is usually manufactured by the electrolysis of brine: sodium chloride or potassium chloride.
This process also produces hydrogen and a small quantity is found in the chlorine stream.
Larger quantities can indicate failure of a mercury cell, diaphragm or membrane and lead to potentially fatal explosive mixtures of hydrogen and chlorine.
Features- Proven Technology from the Katharometer Experts
- Unique Dual Sensor Technology
- Works During Start-up
- Benign, Surrogate Gas Calibration
- Wet and Dry Sample Systems
- Low Cost of Ownership
Specifications
Brand
Gas Measurement Ranges
- Hydrogen: 0 - 5.00 % or 0-10.00 %
- Chlorine: 0-100.0 %
Stability
- < 1 % f.s.d. over the operating temperature range
- < 1 % f.s.d./month
Accuracy
- ± 1 % f.s.d. or ± 2 % f.s.d. depending on calibration method
Repeatability
- < 1 % f.s.d.
Typical Speed of Response
- T90: 30 seconds
Sample Flow
- 100 - 400 mL/min (~350 mL/min for optimum performance)
Sample Temperature Range
- 0° C to +60° C (non-condensing)
Sample Pressure
- Atmospheric
- Set by vent pressure
- ‘Wet’ Chlorine
- ‘Dry’ Chlorine
- ‘Sniff’ or Tail Gas
- Hypo Plant Outlet
