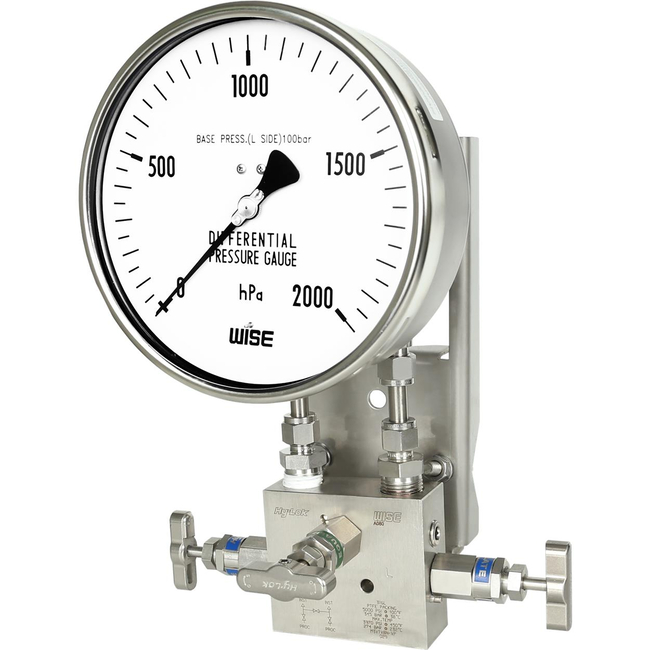

Differential Pressure Gauge with Diaphragm Element P660 Series

Brand: Wise Control Inc

P660 gauge series are differential pressure gauge is designed to measure differential pressure from 4 kPa to 2.5 MPa at static pressure of 10, 25 MPa.

A set of two stainless steel diaphragm mounted on a force balance allows direct reading of the actual differential pressure.

Specifications

Accuracy

  • ± 1.6 % of Full Scale
  • ± 1.0 % of Full Scale

Case & Cover

  • 304 Stainless Steel

Degree of Protection

  • EN 60529 / IEC 529 / IP65

Dial

  • White Aluminum with Black Graduations

Element

  • Diaphragm
  • 316 Ti: Flange Size / DN 140 (Low Side & High Side)
  • 316L Stainless Steel: Flange Size / DN 80 (Low Side) / Duratherm 600 (High Side)

Filling Liquid for Differential Cell

  • Silicone Oil

Nominal Diameter

  • 100 & 160 mm

Options

  • 3-Way & 5-Way Manifold Valve
  • 3-Way & 5-Way Manifold Valve (Monel)
  • Mounting Bracket with 316 Stainless Steel for 2" Pipe
  • Remote Seal - Not Available with less than 40 kPa of Differential Pressure Range

Pointer

  • Black Painted Aluminum Alloy (Zero Adjustable)

Pressure Connection (Flange)

  • 316L Stainless Steel

Process Connection

  • 1/2" NPT Female at 3-Way & 5-Way Manifold Valve
  • 1/4" NPT Female

Scale Range (MPa, KPa, bar, Mbar)

  • Flange Size / DN 80, Max.
  • 0 ~ 4 kPa to 0 ~ 40 kPa
  • 0 ~ 60 kPa to 0 ~ 2.5 MPa
  • Flange Size / DN 140, Max.

Standard Accessories

  • Mounting Bracket for 2" Pipe Mounting with Silver Gray Finished Steel

Temperature Effect

  • ± 0.5 % Per 10° C of Full Scale
  • Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately

Window Material

  • Safety Glass

Working Temperature

  • Fluid: Max.
  • Ambient: -20° to 65° C
