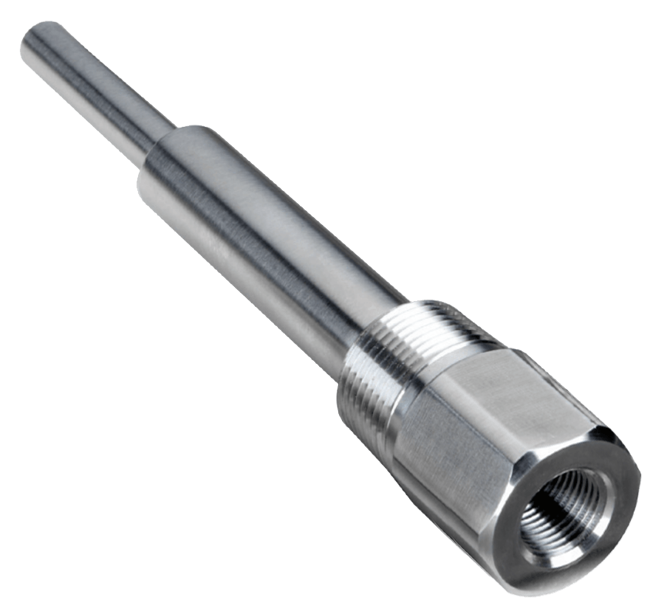

Style HL & SL Bar Stock Thermowell
Brand: United Electric Controls Ltd
- Process Connection:
- 1/2" NPT
- 3/4" NPT
- 1" NPT
- 1-1/2" NPT
- Style:
- NPT connection, stepped stem with lag extension
- NPT connection, tapered stem with lag extension
- Bore:
- 0.260" Bore
- 0.385" Bore
Specifications
Applications
- Food & Beverage
- Military
- Nuclear
- Oil & Gas Applications
- Petrochemical
- Pharmaceutical
Approvals & Certifications
- Material Test Report
Bore Size
- 0.260” (6.6 mm)
- 0.385” (9.78 mm)
Diameter
- Root Diameter (Q): 0.63” to 0.88” (16 to 22.35 mm) - Style SL260 & SL385
- Root Diameter (Q): 0.68” to 1.63” (17.27 to 41.4 mm) - Style HL260 & HL385
Insertion 'U' Length
- If Length of Lag (T) = 2”: 2.5” to 20.5” (63.5 to 520.7 mm)
- If Length of Lag (T) = 3”: 1.5” to 19.5” (38.1 to 495.3 mm)
Lagging Extension
- 2”
- 3”
Length
- Thermowell Length: 6” to 24” (152.4 to 609.6 mm)
Materials of Construction
- Thermowell: 304 Stainless Steel
- Thermowell: 310 Stainless Steel
- Thermowell: 316 Stainless Steel
- Thermowell: 316L Stainless Steel
- Thermowell: 321 Stainless Steel
- Thermowell: 6061 Aluminum
- Thermowell: Alloy 20
- Thermowell: F11 & F91 Forged Carbon Steel
- Thermowell: Hastelloy C
- Thermowell: Inconel 600
- Thermowell: Monel 400
- Thermowell: Titanium
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1-1/2” NPT Female
- 3/4” NPT Female
Thermowell
- Stepped Stem with Lag Extension
- Straight Stem with Lag Extension
- Tapered Stem with Lag Extension
