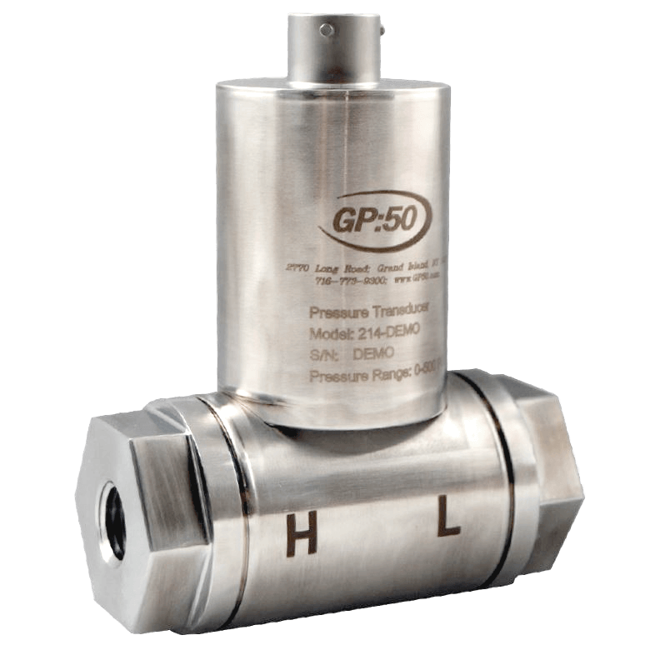

GP:50 Ultra High Range Differential Pressure Transducer, Model 214

Model 214 Differential Pressure Transducer

Brand: GP:50 New York Ltd
Add Product to My Catalog

Features
  • Output Signal: 0 to 5 Vdc, 0 to 10 Vdc
  • Supply Voltage: 9.0 to 40 Vdc excitation, 13 to 40 Vdc excitation
  • Pressure Range: 500 to 20,000 psid (34.47 to 1,379 bar, 3,447 to 137,895 kPa)
  • Burst Pressure: 10 times FSO or 22,500 psi (1,151 bar, 155,132 kPa) whichever is less
  • Proof Pressure: 5 times FSO or 22,500 psi (1,151 bar, 155,132 kPa) whichever is less
  • Electrical Connections: 36" long Belden 8723, 4 conductor cable, 24 AWG
  • Process Connection: 1/4" Female NPT
  • Temperature Range:
    • Operating: -29° to 88°C (-20° to 190°F)
    • Storage: -53° to 121°C (-65° to 250°F)
    • Compensated: -17.7° to 82°C (0° to 180°F)
    • Effect on Zero/Span: ±2.0% Full Scale Output at 100°F
  • Static Accuracy: Standard: ±0.5% Full Scale Output / Improved: ±0.2%
  • Materials of Construction:
    • Housing: 316 Stainless Steel
    • Wetted Parts: 17-4 PH Stainless Steel

Specifications

Brand

Accuracy

  • ± 0.2 % of Full Scale Output
  • ± 0.5 % of Full Scale Output

Burst Pressure

  • 10 times Full Scale Output or 22,500 psi (1,551 bar, 155,132 kPa), whichever is less

Circuit Protection

  • EMI/RFI Protected

Compensated Temperature

  • -17° to 82° C (0° to 180° F)

Electrical Connectors

  • 36” Long Belden 8723, 24 AWG, 4-Conductor Cable

Enclosure, Body Material

  • 316 Stainless Steel

Excitation Voltage

  • 13 to 40 Vdc
  • 9 to 40 Vdc

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -29° to 88° C (-20° to 190° F)

Output

  • 0-10 Vdc
  • 0-5 Vdc

Pressure Range

  • bar: 35 to 1,379
  • kPa: 3,447 to 137,895
  • psid: 500 to 20,000

Proof Pressure

  • 5 times Full Scale Output or 22,500 psi (1,551 bar, 155,132 kPa), whichever is less

Response Time

  • < 5 milliseconds 10 % to 90 %

Span & Zero Effect

  • ± 2.0 % of Full Scale Output at 38° C (100° F)

Static Pressure

  • 5 times Differential Pressure Range or 22,500 psi (1,551 bar, 155.1 MPa) whichever is less

Storage Temperature

  • -53° to 121° C (-65° to 250° F)

Wetted Materials

  • 630 Stainless Steel

Zero Offset

  • < ± 1.0 % of Full Scale Output at 1,000 psid
