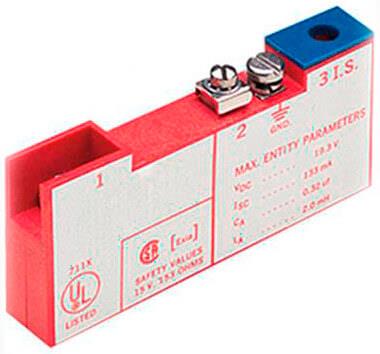

65800 Series Single Channel Zener Barrier
Brand: Gems Sensors, IncThe exceptionally compact design of Gems 65800 Series units saves space and simplifies installation; especially in multiples on a common mounting plate. They provide great economy as well since no explosion-proof enclosures are needed for sensor wiring.
Encapsulated construction is impervious to dust and moisture. Single-screw mounting is standard, but units can be supplied with an optional clip for rail mounting. The single through-mounting screw also provides electrical connection to ground through the earth-grounded mounting surface.
Any non-voltage-producing sensor or switch is rendered intrinsically safe for hazardous locations when properly connected to the output of these Zener Barriers.
Features- Intrinsic safety with solid-state reliability
- Compact size streamlines installation
- Space-saving inmultiples
- Encapsulated construction is impervious to dust and moisture
Specifications
Brand
Ambient Temperature
- Operating Temperature: -40° to 140° F (-40° to 60° C)
Resistance
- 33.9 to 750 ohms
Input
- 15-30 Vdc
- 62 to 250 mA
Certifications & Approvals
- UL
- CSA
