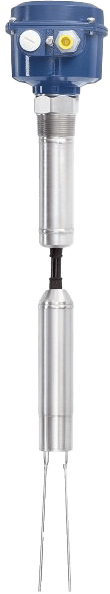

Vibranivo Vibrating Level Switch
Brand: Hawk Measurement SystemsThe Vibranivo Vibrating Level Switch Series is used for level monitoring in all types of containers and silos.
It can be used with all powdery and granulated bulk materials that do not show a strong tendency to form crusts or deposits.
Detection of solids in water is also possible.
The units can be delivered with a wide range of Ex-approvals for use in Gas and Dust Hazardous Areas.
Features- Vertical, horizontal and oblique installation
- Full, Demand, Empty Detector
- Easy access for wiring via larger electronics housing
- Suitable for liquids and solids applications
Specifications
Brand
Certifications
- ATEX
- IEC Ex
- FM
- CSA
- TR-CU
Sensitivity
- A/B Adjsutable
Relative Humidity
- 0-100 %, Suitable for Outdoor Use
Pressure Range
- -1 Up to +16 bar
- -14.5 Up to +145 psi
Housing
- Aluminium IP66 / NEMA Type 4X
Process Temperature
- -40° C to 150° C
- -40° F to 302° F
