GM901 In-Situ Gas Analyzer

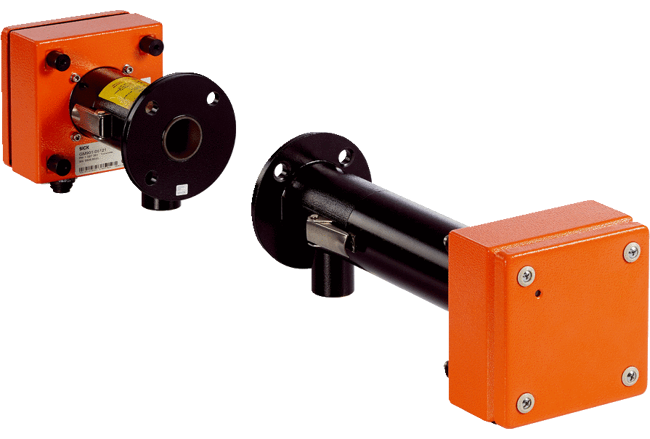

Brand: Sick AGThe GM901 gas analyzer is available as a cross-duct or probe type.
As a result, it is suited to a broad range of applications – even for difficult measuring tasks such as high dust loads, overpressure, critical flow profiles, or high measuring gas concentrations.
Features- Measurement results in real time due to in-situ measurement
- Fast and simple installation and commissioning
- Easy, user-friendly operation
- Economical due to low maintenance
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP54
- IP65
Measuring Distance
- 0.5 to 8 m
Measuring Range
- 0 to 20,000 ppm
Response Time
- 5 to 360 s
Process Temperature
- With Extended Calibration: ≤ 430° C
- ≤ 250° C
- Gas-testable Measuring Probe (GPP) ≤ 220° C
Process Pressure
- GM901 Measuring Probe System: ≤ 120 hPa
- GM901 Cross-duct System: ≤ 30 hPa
Ambient Temperature
- -20° to 55° C
Mounting
- Mounting Flange, ANSI, 5″
- Mounting Flange, DN 125, PN 6
Power Supply
- 115 Vac / 230 Vac, 50/60 Hz, Power Consumption ≤ 75 VA
Accuracy
- ± 5 % of Measuring Range Full Scale
Communication
- PROFIBUS DP
- CAN Bus
- RS-232/RS-485
Documentation
Data Sheets
Product Manuals
- Additional Information For Analyzers, Measuring Devices And Traffic Sensors According To EN IEC 61010-1:2011 pdf 908 KB
- GM901 Carbon Monoxide Measuring Device, Cross-Duct Version Operating instructions470 pdf 4.9 MB
- GM901, Measuring Probe Version Operating Instructions pdf 7.8 MB
- Safety Information For Non-Ex Analyzers pdf 2.8 MB
- SLV4 - Purge Air Unit Operating Instructions pdf 1.2 MB
