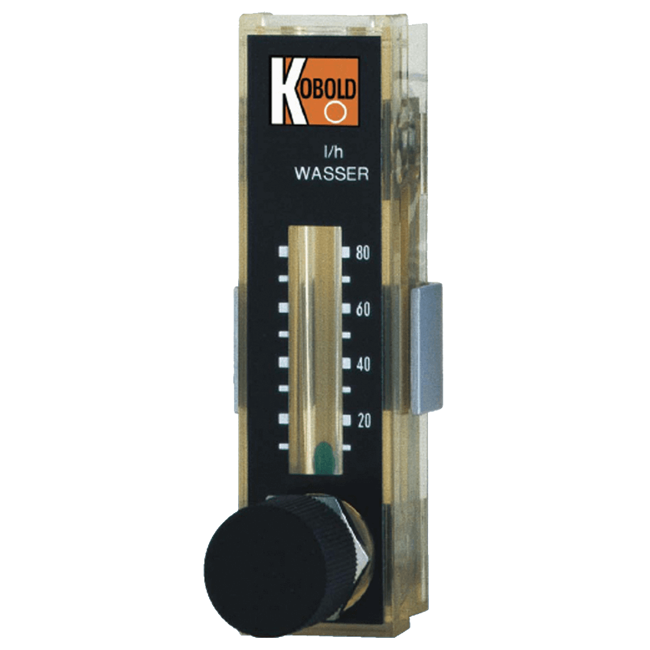

KSV Variable Area Flowmeter

Brand: KOBOLD Instruments, Inc

The KOBOLD Flow Meter and Switch for very low flows Model KSV for liquids or air operates on the suspended float principle. The direction of flow is from bottom to top, and the installation position is vertical. The indication point is the upper edge of the ball.

The device has been designed as a simple and thus economical measuring system. The optional needle valve allows economical control. The device has been designed for panel mounting.
Features
  • Acid and Caustic-Proof
  • Suitable for Sterilisation (120 °C)
  • Shock Resistant
  • Small Size
  • Light weight
  • Easy to Install

Specifications

Accuracy

  • ± 6 % of Full Scale

Connection Material

  • Brass
  • Nickel-Plated Brass
  • Stainless Steel

Enclosure, Body Material

  • Polysulfone

Flow Rate

  • 0.25 to 1.5 Nm³/hour to Air
  • 0.25 to 80 L/hr in Water
  • 0.5 to 2.5 Nm³/hour to Air
  • 20 to 80 NL/hr to Air
  • 50 to 150 NL/hr to Air
  • 50 to 300 NL/hr to Air
  • 50 to 500 NL/hr to Air

Materials of Construction

  • 316 Stainless Steel
  • Brass
  • Glass
  • Polysulfone
  • Titanium

Maximum System Pressure

  • psi: 87.02 (kPa: 600, bar: 6)

NPT Connection

  • 1/8” NPT Female

O-Ring Material

  • FPM
  • NBR

Operating Pressure

  • psi: 87.02 (kPa: 600, bar: 6)

Operating Temperature

  • -20° to 120° C (-4° to 248° F)

Repeatability

  • 1%

Temperature Range

  • 120° C (248° F) - Max.
