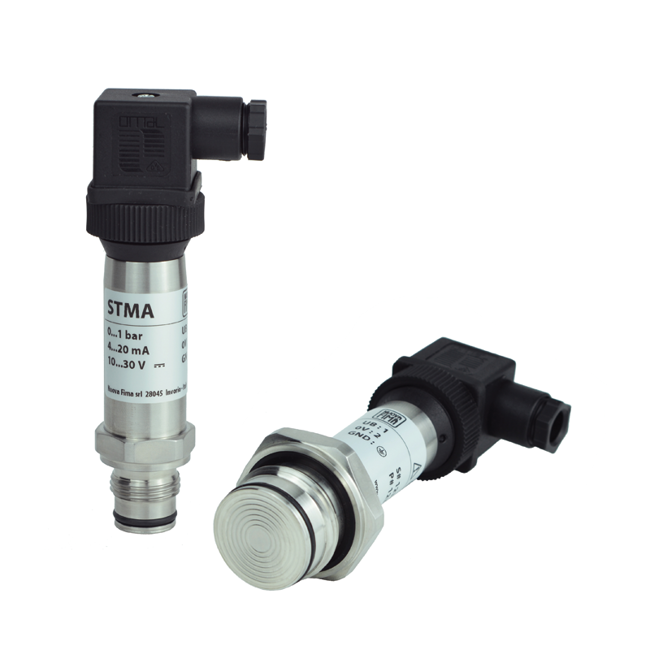

ST MA/DG Piezoresistive Pressure Transmitter Flush Diaphragm, Double Sealing
Brand: Nuova FimaPiezoresistive pressure transmitter flush diaphragm, double sealing, 0.5% accuracy.
Specifications
Brand
Accuracy
- ≤ ± 0.5 % of Span
Ambient Temperature Range
- -13° to +185° F (-20° to +85° C)
Annual Drift
- ≤ 0.2 % of Span
Case
- Stainless Steel, Vented for Pressure Ranges ≤ 230 psi (≤ 16 bar)
Emission & Immunity Standard
- As Per IEC 61326, (Group 1 - B Class, Industrial Application)
Filling Liquid
- Silicon Oil
IP Protection Rating
- IP65 as Per EN 60529
Non-Linearity (BFSL)
- ≤ 0.25 % of Span as Per IEC 61298-2
Non-Repeatability
- ≤ 0.1 % of Span as Per IEC 61298-2
Output Signal
- 4-20 mA
Process Connection & Diaphragm
- AISI 316L Stainless Steel
Process Fluid Temperature
- -22° to +212° F (-30° to +100° C)
Range
- 0 to 0.1 / 0 to 600 bar, Relative
- 0 to 0.4 / 0 to 16 bar, Absolute
- -0.4 to 0 / -1 to +24 bar, Relative
Response Time
- < 10 milliseconds (Adjustment)
- < 150 milliseconds (Power On)
Sealing
- Double, for a Safer Tight
Sensor
- Piezoresistive
Shock Resisitance
- 40 G (6 Ms, as Per IEC M60068-2-27)
Storage Temperature
- -40° to +185° F (-40° to +100° C)
Vibration Resisitance
- 20 G (10 to 2000 Hz, as Per IEC M60068-2-6)
Zero Calibration & Span Calibration
- ± 5 % of Span Typical
