Submersible Chopper Conditioning Pump

Brand: Vaughan Co, Inc
Add Product to My Catalog

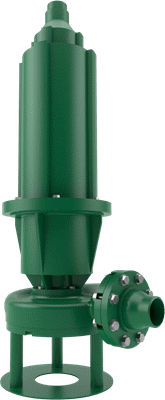

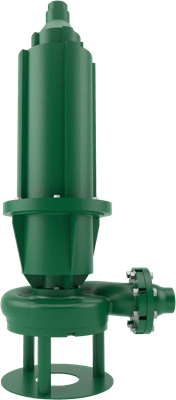

vc-web-conditioningpump-renders-45.png vc-web-conditioningpump-renders-90.png

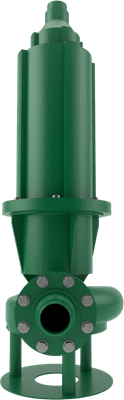

The Vaughan Conditioning Pump™ is a Vaughan Submersible Chopper Pump mounted on a portable stand and fitted with high-velocity mixing nozzle.

The Conditioning Pump recirculates the contents of the wet well, chopping and mixing to produce a homogeneous mixture that is more easily pumped out.

Floating mats are removed and solids that have accumulated on the floor are re-suspended.

As the pump is mounted on a portable stand it can easily be used in multiple applications at a single job-site, facility or municipality.

Another high quality offering from the brand you trust.
Features
  • Portable Configuration Comes Complete with Stand for Ease of Installation.
  • 3”-6” Pumps with 5 HP - 40 HP Motor and Flows from 400 GPM - 1800 GPM are Standard Product. Larger Models with Higher Flow Rates are Available.
  • Conditions Tank Contents to Prevent Plugging of Standard Non-clog Pumps and Helps Protect Downstream Equipment.
  • Removes Floating Materials and Resuspends Settled Solids.
  • Straight, Angled and Double Nozzle Configurations Available.
  • Vaughan’s Exclusive Non-clog Performance Guarantee.
  • Paint System Specifically Formulated to Withstand Severe Wastewater Environments.

Specifications

Brand

Impeller/Upper Cutter/Cutter Bar/Cutter Nut

  • Cast alloy steel, heat treated to minimum Rockwell C 60

Casing/Bearing Housing

  • Ductile cast iron

Mechanical Seal

  • Cartridge type with silicon carbide seal faces and stainless steel sleeve

Thrust Bearings

  • Back-to-back angular contact ball type

Lubrication

  • ISO Grade 46 hydraulic oil

Paint

  • Epoxy

  • Lift Station Conditioning
  • Basin Conditioning
  • Influent Station/Channel Conditioning
  • Holding Tank Conditioning
  • Digester Cleanout/Homogenization
