Trimod Besta Standard Range 50 Series Magnetic Level Indicator, Type 32755-O

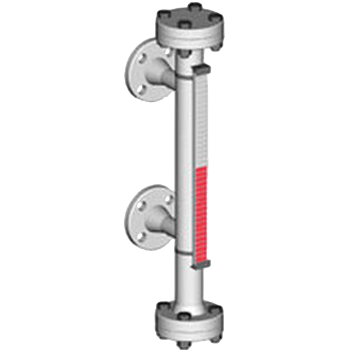

Type 32755-P Standard Range 50 Series Magnetic Level Indicator

Brand: Trimod Besta
Add Product to My Catalog

Version O, side tank connection flange, outer diameter of the stand pipe 54 mm.

Specifications

Brand

Approvals & Certifications

  • Float Chamber Material: EN 10204: 2004-3.1 Certificate

BSP Connection

  • G 3/8” (ISO 7-1 / ISO 228-1) with Plug

Density Range

  • ≥ 0.55 g/cm³

Distance

  • Connecting Distance: 220.5” (5,600 mm)

Electrical Connectors

  • Plug G 3/8” (ISO 7-1) & NiCu Gasket at > 250° C (> 482° F)
  • Plug R 3/8” (ISO 7-1) & PTFE Tape at ≤ 250° C (≤ 482° F)

Environmental Protection

  • IP54
  • IP65
  • IP68

Flange Material

  • Collars, Raised Sealing Surface SF (Smooth Finish): 316L Stainless Steel

Flange Size - 1-1/4” (DN 32)

  • 1-1/4” (DN 32) - 150# ANSI/ASME B16.5
  • 1-1/4” (DN 32) - PN 20 (ISO -DIS7005-1.2, Typical 01/B1)
  • 1-1/4” (DN 32) - PN 40 (ISO -DIS7005-1.2, Typical 01/B1)

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ANSI/ASME B16.5
  • 1” (DN 25) - PN 20 (ISO -DIS7005-1.2, Typical 01/B1)
  • 1” (DN 25) - PN 40 (EN 1092-1)

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150# ANSI/ASME B16.5
  • 1/2” (DN 15) - PN 20 (ISO -DIS7005-1.2, Typical 01/B1)
  • 1/2” (DN 15) - PN 40 (ISO -DIS7005-1.2, Typical 01/B1)

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150# ANSI/ASME B16.5
  • 3/4” (DN 20) - PN 20 (ISO -DIS7005-1.2, Typical 01/B1)
  • 3/4” (DN 20) - PN 40 (ISO -DIS7005-1.2, Typical 01/B1)

Gasket Material

  • Fiber Compound Aramid
  • Graphite Including Reinforcing Net in 316, 316L Stainless Steel at < 400° C (752° F)
  • NBR
  • Pure PTFE, Non-Reinforced

Materials of Construction

  • Float Chamber, Damping Spring Top & Bottom: 316 Stainless Steel, 1.4401
  • Float Chamber: 316L Stainless Steel
  • Float: Titanium Alloy
  • Indication Rail: Aluminum
  • Indication Rail: Glass
  • Indication Rail: Polycarbonate

Nut & Bolt Material

  • Screws & Nuts: A2-70 Stainless Steel (ISO 3506)

Operating Pressure

  • psi: 725 (kPa: 5,000, bar: 50) - Max.

Operating Temperature

  • -80° to 400° C (-112° to 752° F)

Sensor, Probe Style

  • Float

Viscosity

  • ≤ 600 cSt

Documentation

Data Sheets
