100 Series High Performance Temperature Controls

Brand: Future Design Controls

Future Design Controls dual display 100 Series set a new standard for DIN temperature controllers packed with performance to meet low cost OEM needs while providing reliable High Performance temperature control with 3-Year Warranty.

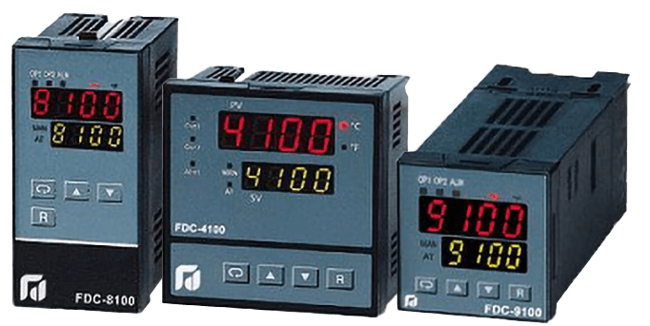

The 9100, 8100 & 4100 are dual display 1/16, 1/8 & 1/4 DIN controls.

With the highest input resolution for like products, fast scan rate and proprietary Fuzzy Logic Auto Tune the 100 Series provides world-class control performance.

Available in 1/32, 1/16, 1/8 & 1/4 DIN sizes with up 3 control outputs plus Communications.
Features
  • Fuzzy Logic PID Temperature Control
  • Up to three Control outputs
  • 5VDC & 14VDC SSR
  • Variety of Alarm modes
  • Transmitter Power Supply
  • SEL Function to arrange user menu
  • UL, cUL, CE, RoHS
  • Nema 4X/IP65 protection available
  • FREE Data Acquisition Software

Specifications

Power Input

  • 90-250 Vac, 50/60 Hz
  • 11-26 Vac/ Vdc

Thermocouple

  • Type J,K,T,E,B,R,S,N,L

RTD

  • PT 100 ohm RTD (DIN or JIS)

Accuracy

  • Typically better than ± .25 % of Span

Operating Temperature

  • -10° C to 50° C

Humidity

  • 0-90 % Relative Humidity, Non-Condensing

IP Panel Rating

  • IP50
  • IP65 Optional

  • Oven - Furnaces - Kilns
  • Hot Plates / Melt Pots
  • Food Service Equipment
  • Environmental Chambers
  • Sterilizers / Autoclaves
  • Packaging Machines
  • Plastics Machinery
