V-800 Series Miniature Precision Vacuum Regulator

Brand: Airtrol Components Inc

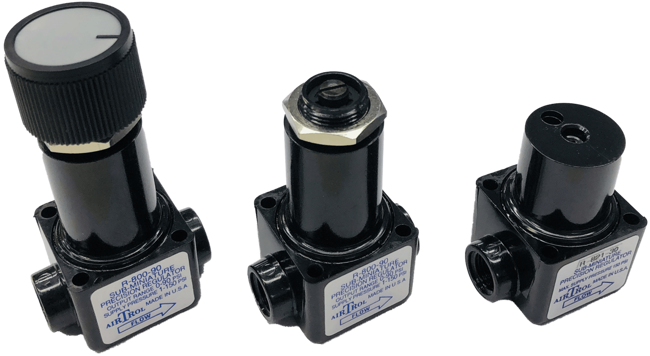

The V-800 Series vacuum regulators are designed for applications requiring high precision in a miniature package. Hysteresis free adjustments are made through a non-rising stem. Available with an attractive knob, or plain, allowing installation of OEM knobs.

Also available is a flush adjusting shaft, and factory pre-set tamper-resistant models. Units may be base mounted or panel mounted.

Specifications

Regulator Type

  • Constant Bleed
  • Relieving

Wetted Materials

  • Polysulfone
  • Buna-N
  • EPDM
  • Acetal
  • Polyurethane
  • Stainless Steel

Supply Consumption

  • < 16 SCIM (260 cc/min) @ 30” (760 mm) Hg supply

Maximum Supply

  • 30″ [760 mm] Hg

Temperature Range

  • 40° - 150° F (4° - 66° C)

Effect of Supply Variation

  • < 0.03” (.76 mm) per 5” (127 mm) Hg supply change when dead-ended

Repeatability

  • < ± 0.05” (1.25 mm) Hg when supply is removed and re-applied

Sensitivity

  • 1″ (25.4 mm) H₂O

Maximum Flow

  • 1.0 cu.ft./min. (28 LPM)

Recommended Filtration

  • 5 micron

  • Medical Equipment
  • Pick ‘n Place
  • Laboratory Instruments
  • Process Control
