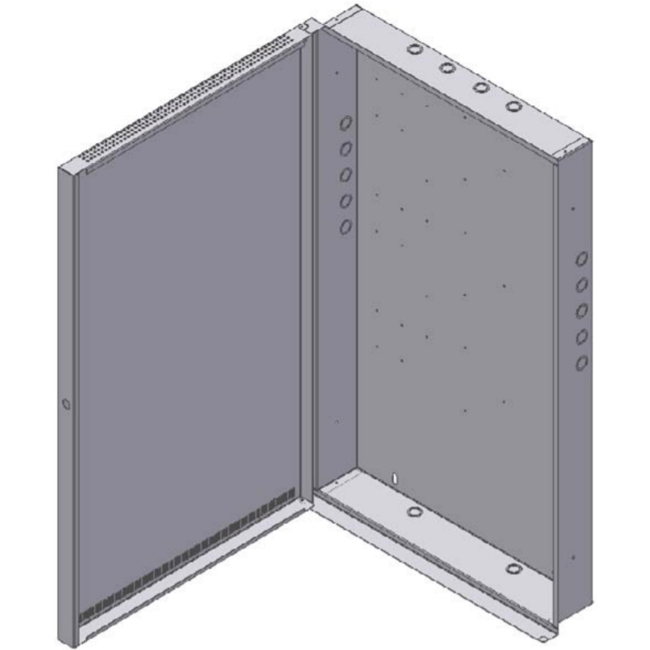

3 AMP Remote Audio Enclosure

The 3 AMP, Remote Audio enclosure is designed to house up to three voice evacuation system amplifiers.

The enclosure allows the voice evacuation system amplifiers to be strategically located near the areas that they serve, thus reducing the wire length of the speaker circuits.

The enclosure is made of 18 gauge steel with a baked on enamel finish (red or black). It is designed so that it can be surface or flush mounted to the wall.

Numerous conduit knockouts are provided on all four sides of the enclosure to allow easy access to the cabinet during system installation.

Threaded press-studs are supplied in the enclosure back-box for easy installation of electronic components (i.e., amplifiers and transformers).

The removable exterior door is hinged on the left side of the back-box and is equipped with a key-lock to prevent unauthorized access to system components.
