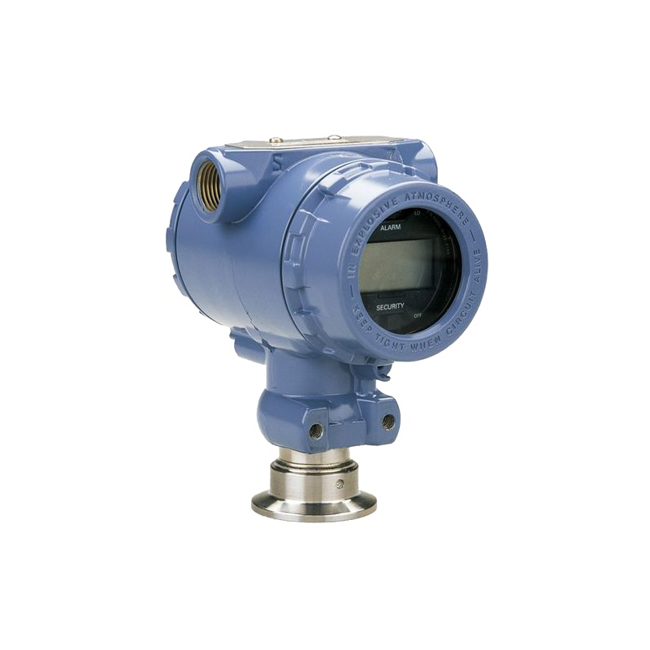

2090F Hygienic Pressure Transmitter
Brand: RosemountDesigned for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for the pharmaceutical and food and beverage industries.
Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware.
In addition, this hygienic pressure transmitter conforms to 3-A® Sanitary Standards, allowing you to meet tough process requirements.
Features- Tri Clamp process connection designed for standard sanitary fittings
- Conforms to 3-A Sanitary Standards for hygienic application compliance
- Utilizes single-filled sensor system for reliability and accuracy
- CIP/SIP service for process temperatures of up to 284° F (140° C)
- Fully configurable LCD displays process variable, percent of range and diagnostic messages
Specifications
Brand
Approvals & Certifications
- 3-A Sanitary Standard
Approvals & Certifications
- ATEX
- EAC
- IECEx
- NAMUR
Communication
- 4-20 mA HART
Diaphragm Material
- 316L Stainless Steel
Fill Material
- Neobee M20
Measuring Range
- Up to psig: 300 (kPa: 2,070, bar: 20.7) Gauge & Absolute
NACE & NIST
- NACE
O-Ring Material
- Buna-N
Output
- 4-20 mA
Pressure Type
- Absolute
- Gauge
Tri-Clamp Connection
- 1-1/2" Tri-Clamp
- 2" Tri-Clamp
Turndown
- Rangedown: up to 20:1
Wetted Materials
- 316L Stainless Steel
Documentation
Certificates & Approvals
Drawings & Schematics
- Type 1 Drawing: Rosemount 2090F Hygienic Pressure Transmitter 2D DXF dxf 5.7 MB
- Type 1 Drawing: Rosemount 2090F Hygienic Pressure Transmitter 2D PDF pdf 614 KB
- Type 1 Drawing: Rosemount 2090F Hygienic Pressure Transmitter 3D SAT sat 7.9 MB
- Type 1 Drawing: Rosemount 2090F Hygienic Pressure Transmitter 3D STP stp 8.8 MB
