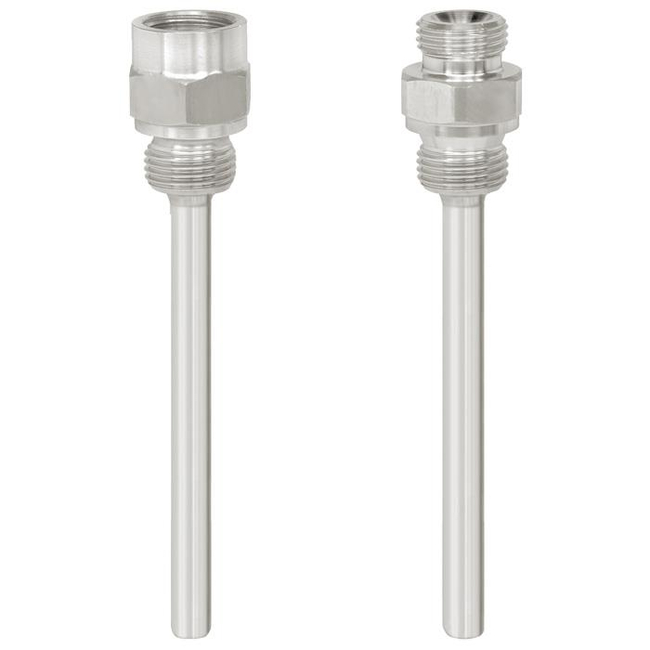

Screw-In Thermowell (Fabricated) - TW45
Brand: WIKA Alexander Wiegand SE & Co. KGEach thermowell is an important component of any temperature measurement point.
It is used to separate the process from the surrounding area, thus protecting the environment and operating personnel and keeps aggressive media, high pressures and flow rates from the temperature sensor itself and thereby enables the thermometer to be exchanged during operation.
Features- Version per DIN 43772.
- Model TW45-F: Form 5.
- Model TW45-G: Form 8.
Specifications
Thermowell Material
- Stainless Steel 1.4571, Copper Alloy
Process Connection
- G 1/2” B, G 3/4” B Male
Bore Size
- Ø 7 mm, Ø 9 mm, Ø 11 mm
Insertion Length
- 73 to 410 mm
Maximum Operating Temperature
- 160° C
- Chemical industry, process technology, apparatus construction
- For low and medium process loads
