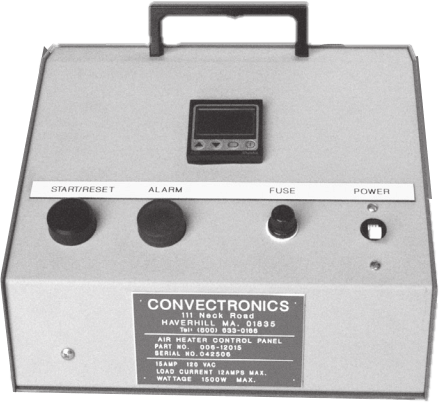

Phase Angle Control Console
Brand: Convectronics, IncConvectronics’ phase angle control consoles are designed with sophisticated PID auto tune controls and phase angle fired SCR’s for fast control response of resistive air heater loads.
Phase angle firing provides longer heater life with significantly more accurate and stable temperature control. Distinctively compact and portable.
Power, heater and thermocouple plug connections make installation and start-up quick and effortless. Consoles can be used on any appropriately sized resistive heater load.
Features- Auto Tune PID Zone Control
- Phase Angle SCR
- K Thermocouple Input
- Programmable Latching High Alarm
- ON/OFF Switch with Pilot Light
- Control Circuit Fusing
- Plug-in Power, Load and Thermocouple
- All Mating Plugs Supplied
- Compact/Portable Design
Specifications
Brand
Manufacturer Part Number
- 006-12015
Shipping Weight (lbs)
- 10.750000
Country of Manufacture
- United States
Dimensions
- 10”W x 7.5”H x 6.5”D
Volts
- 120 Volt 15 Amp Single
