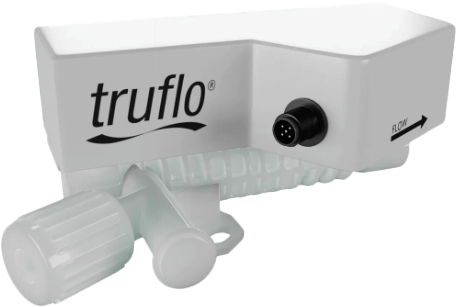

UltraFlo 1000 Ultrasonic Flow Meter

Brand: Truflo®

The Ultraflo 1000 Ultrasonic Flow Meter utilizes ultrasonic technology to measure both conductive and non conductive liquids, and is an excellent choice for very corrosive liquids such as strong acids and alkalines.

The UltraFlo 1000 has no moving parts and can measure pulsating, dosing and metering flow applications.

All parts that contact the liquid are made of corrosion resistant PFA Teflon®.

The UltraFlo 1000 Ultrasonic Flow Meter is characterized by its high measurement accuracy and repeatability.
Features
  • Simple to Install
  • RS-485 Output, 4-20mA
  • Display Flow Rate + Totalizer
  • 4-20mA Output + Pulse Relay
  • IP67 Enclosure
  • Negligible Pressure Drop
  • Empty Pipe Alarm

Specifications

Brand

Material

  • Pipe: PFA Teflon
  • Electronics: PP
  • Nut: PFA/NPT Adaption

Protection Class

  • IP67
  • NEMA 4X

Medium Temperature

  • -40° F to 248° F
  • -40° C to 120° C

Maximum Pressure

  • 100 psi
  • 7 bar

Connection Sizes

  • 3/8”
  • 1/2”
  • 3/4”
  • 1”

Power Suply

  • 24 Vdc 3.6W

Output

  • 4-20 mA + Pulse Relay
  • RS-485
